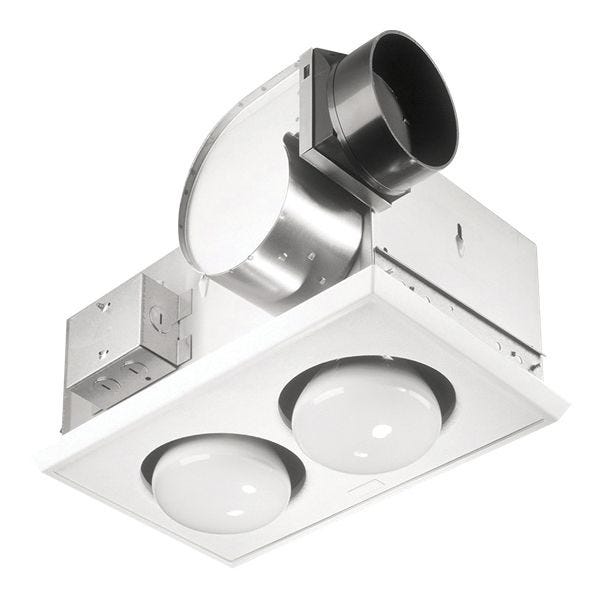

Broan 164

250W 70CFM 2BULB HEAT/VENT/FAN
SKU
176277
The product cannot be delivered by Truck Shipping

Broan® Bulb Heater, 70 cfm, 4 in Duct Dia, 120 VAC, 4.5 A, 545 W, 500 W Heater, 500 W Lamp, Infrared Lighting, Ceiling Mount, 15-5/8 in L x 10-1/4 in W Grille, Polymer Grille, 8-3/8 in L x 14-1/4 in W x 6-3/8 in H Housing, Steel Housing, Humidity Sensing: No, White

  • Bulb heater/fans provide silent warmth and superior ventilation in a compact package
  • Heat and ventilation functions may be controlled separately or in combination so you're always in control of the environment
  • Very low profile, white polymeric grille blends into most ceilings
  • 70 cfm fan provides excellent ventilation at a quiet 3.5 Sones and will keep your bath free from steam or bathroom odors
  • Use 250 W BR40 size infrared bulbs (not included) for comfortable heating performance
  • Quiet, highly efficient polymeric blower wheels maintain consistent power, while polymeric dampers prevent backdrafts and eliminate mechanical noise for reliable operation and a comfortable environment, UL listed for safety
  • Sturdy steel housing, a plug-in, permanently lubricated motor adjustable mounting brackets with keyhole slots and a 4 in round duct connector with tapered sleeves combine to make installation logical and simple
  • Control operation with a choice of wall controls, available separately, 57W, 57V, 59W, 59V, 61W, 61V, 63W, 63V, 64W, 64V, 68W, 68V, 70TW, 71V, 72W, 72V, 269WL, 269VL, DH100W or T24H
  • Ceiling heaters are intended to provide supplemental heat and not to take the place of the home's main heat source
  • Polymeric dampers eliminate metallic clatter while preventing backdrafts
  • Polymeric 4 in round duct connectors with tapered sleeves provide easier, positive ducting
  • Adjustable mounting brackets with keyhole slots that span upto 24 in
  • Use with Broan® model 68W, 68V, 67W, 67V, 66W, 66V, 65W or 65V multi-function control (available separately)
More Information
Housing Material Steel
Lighting Type Infrared
Housing Size 8-3/8 in L x 14-1/4 in W x 6-3/8 in H
Flow Rate 70 cfm
Power Rating 545 W
Grille Material Polymer
Amperage Rating 4.5 A
Voltage Rating 120 VAC
Duct Diameter 4 in
Humidity Sensing No
Grille Size 15-5/8 in L x 10-1/4 in W
Heater Wattage 500 W
Color White
Mounting Type Ceiling
Lamp Wattage 500 W
Brand Broan-NuTone
