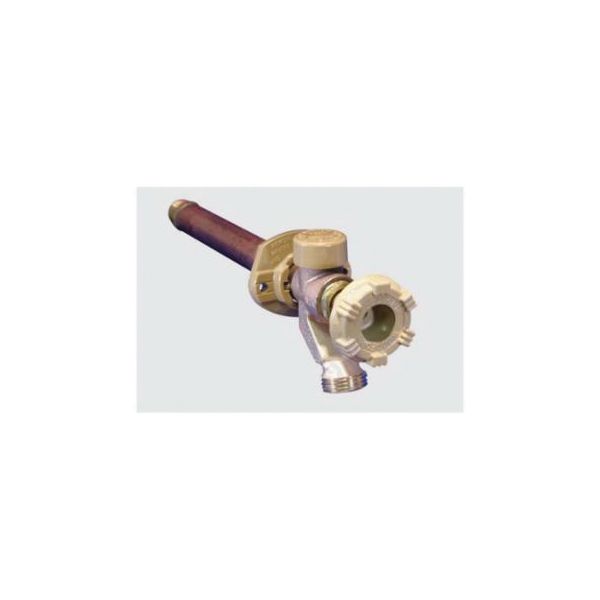

Woodford 17PX3-8-MH
3/4 X 8 AS PEX NF WALL FAUCET
SKU
692105
Woodford® Wall Faucet, Anti-Siphon Freezeless, Series: Model 17, 3/4 in Nominal, PEX Tube, 8 in Wall Thickness, 125 psi, Wheel, 120 deg F, 15/16 in Dia Inlet, Domestic
- This unit offers anti-siphon protection
- 3/4 in male hose thread nozzle
- Stainless steel seat - eliminates wire draw
- EPDM packing to prevent leaking
- Full circle operating threads on valve body and retainer
- No lead solder
- Standard "O" size seat washer
- Powder-coated, die cast aluminum handle
- Adjustable polycarbonate wall flange
| Pressure Rating | 125 psi |
|---|---|
| Type | Anti-Siphon Freezeless |
| Domestic/Import | Domestic |
| Wall Thickness | 8 in |
| End Style | PEX Tube |
| Series | Model 17 |
| Dimensions | 15/16 in Dia Inlet |
| Handle Type | Wheel |
| Temperature Rating | 120 deg F |
| Nominal Size | 3/4 in |
| Brand | Woodford |
