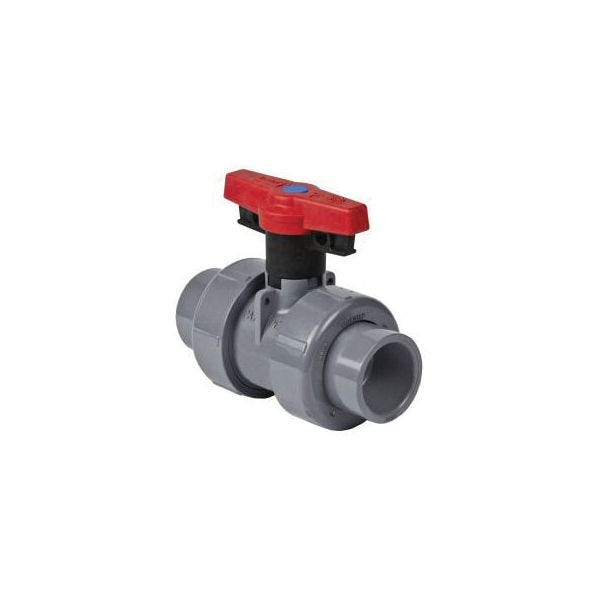

Spears 1829-012C
1-1/4" SCH80 CPVC T/U BALL VLV
SKU
898850
Spears® Ball Valve, Industrial, Series: True Union 2000, 1-1/4 in Nominal, Socket and FNPT, 235 psi, 200 deg F, T-Handle Actuator, CPVC Ball, 5-13/16 in Inlet to Outlet Length, 3-5/8 in Top to Inlet Center, CPVC Body, CPVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic
- Chemical and corrosion resistant PVC or CPVC construction
- Strong, buttress thread union nuts
- Spears® Safe-T-Blocked® seal carrier
- Uses standard O-Ring seat
- Fully serviceable, replaceable components
- Assembled with silicone-free, water soluble lubricant
- Suitable for either horizontal or vertical installations and vacuum service
- EPDM O-ring
| Color | Gray |
|---|---|
| End Style | Socket and FNPT |
| Body Material | CPVC |
| Pressure Rating | 235 psi |
| Inlet to Outlet Length | 5-13/16 in |
| Softgoods Material | EPDM |
| Ball Material | CPVC |
| Top to Inlet Center | 3-5/8 in |
| Series | True Union 2000 |
| Trim Material | CPVC Stem and PTFE Seat |
| Temperature Rating | 200 deg F |
| Actuator Type | T-Handle |
| Domestic/Import | Domestic |
| Type | Industrial |
| Nominal Size | 1-1/4 in |
| Brand | Spears |
| Size | 1-1/4" |
