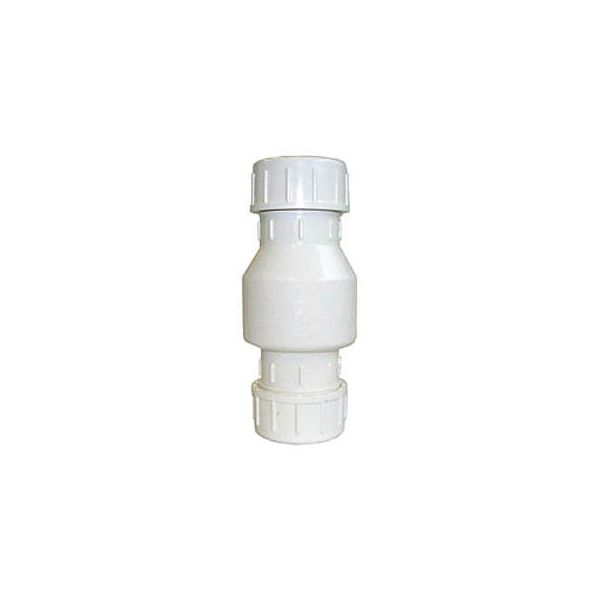

LEGEND 203-238
2" S-614 PVC CHECK VALVE
SKU
728610
LEGEND Swing Check Valve, Series: S-614, 2 in Nominal, Compression, 150 psi, 73 deg F, Low Lead Compliance: No, Full Port, Media: Water, 9.62 in Inlet to Outlet Length, PVC Resin Body, 4.2 in W, Import
- Compression-type end connections are designed to fit onto SCH 40/STD or SCH 80/XH PVC pipe or steel pipe
- 0.5 lb positive cracking pressure
- Full flow waterways are ideal for wastewater, grey water or sewage installations
- Can be installed in either vertical (upward flow only) or horizontal (flapper hanging) positions
- Weighted flapper assures quick, positive closure in low or high-backflow conditions
- Not suitable for compressed air or steam service
| End Style | Compression |
|---|---|
| Temperature Rating | 73 deg F |
| Inlet to Outlet Length | 9.62 in |
| Domestic/Import | Import |
| Media | Water |
| Dimensions | 4.2 in W |
| Low Lead Compliance | No |
| Port Type | Full |
| Pressure Rating | 150 psi |
| Nominal Size | 2 in |
| Series | S-614 |
| Body Material | PVC Resin |
| Brand | Legend |
| Type | Swing Check Valve |
