Moen 2360PF
POSI-TEMP T/S VLV 1/2CRIMP PEX
SKU
892553

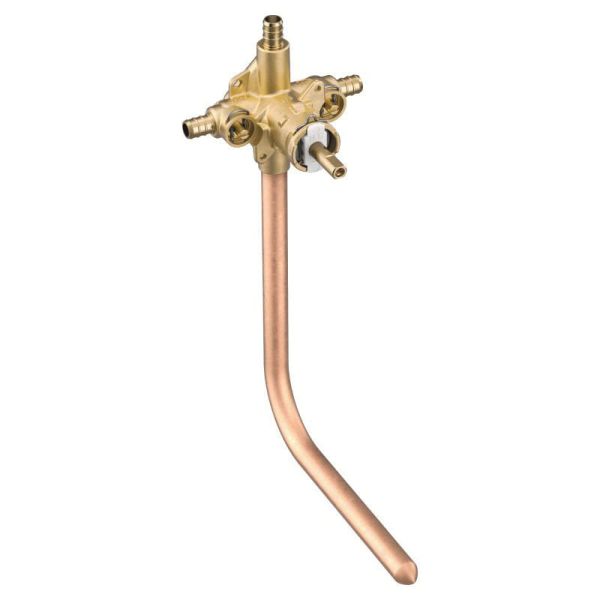

Moen® Pressure Balancing Valve, Series: Posi-Temp® M-Pact®, 1/2 in Crimp Ring PEX Inlet Connection, 1/2 in Crimp Ring PEX Outlet, For Use With: Posi-Temp® Tub/Shower, Wall Mount, Brass Body, Domestic
- Built on the Moen® M-Pact® common valve system, allowing you to update the faucet style in the future without replacing any plumbing
- 1222 cartridge
- Four ports
- Install with Posi-Temp® pressure balancing control valve to maintain water temperature control in the shower
- Tub outlet 8 x 7 x 1/2 in copper tube
- Adjustable temperature limit stop to control maximum hot water temperature
- Pressure balancing mechanism maintains selected discharge temperature to +/- 3 deg
- Pressure balancing valve design with 1/2 PEX connections with 1/2 in CC tub drop
| Inlet Connection | 1/2 in Crimp Ring PEX |
|---|---|
| Mounting Type | Wall |
| Series | Posi-Temp® M-Pact® |
| Body Material | Brass |
| Domestic/Import | Domestic |
| Suitable For Use With | Posi-Temp® Tub/Shower |
| Outlet Connection | 1/2 in Crimp Ring PEX |
| Brand | Moen |
