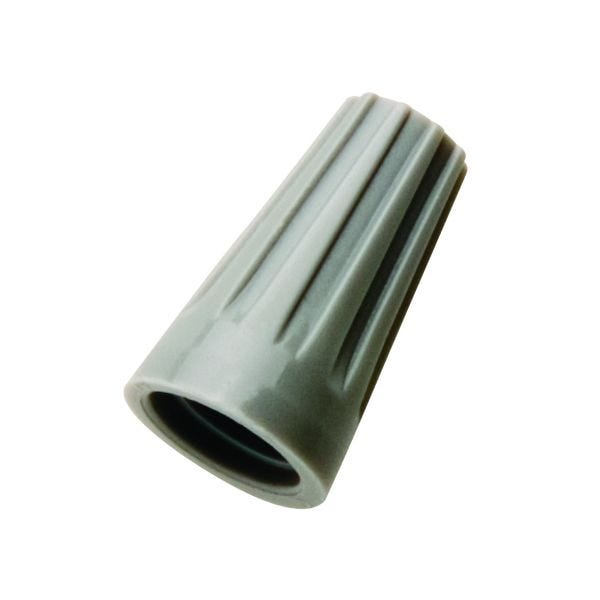

IDEAL 30-071
GRAY WIRENUT CONN 100 BOX
SKU
801433
IDEAL®, 30-071, Wire Connector, Flame-Retardant, Series: 71B®, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 16 AWG Wire, 300 VAC, Specifications: 1/4 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 16 to 2 AWG Minimum, 16 to 2 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Gray, Zinc Plated, 21/64 in W x 37/64 in H Dimensions
- Fixed, square wire spring creates its own threads maintains a secure positive grip that will not relax over time
- No pre-twisting required, positive grip design provides fast and easy installation
- Refined range to handle all common applications
- Reusable for easy circuit changes and additions
- For tough environmental conditions
- Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
- Approved for bonding and grounding applications
- High temperature models designed to withstand the extreme heat build-up found in high wattage light fixtures and signs
- Excellent for fine stranded wire applications
- Positive grip shell that is comfortable to twist-on with fingers
| Temperature Rating | 221 deg F |
|---|---|
| Color | Gray |
| Dimensions | 21/64 in W x 37/64 in H |
| Spring Type | Fixed/Square Wire |
| Specifications | 1/4 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 16 to 2 AWG Minimum, 16 to 2 AWG Maximum Conductor Combination Size |
| Wire Type | Solid/Stranded Copper |
| Shell Style | Positive Grip |
| Voltage Rating | 300 VAC |
| Series | 71B® |
| Material | Polypropylene |
| Wire Size | 22 to 16 AWG |
| Type | Flame-Retardant |
| Finish | Zinc Plated |
| Brand | Ideal Industries |
| Splices | Twist-On Connectors |
