Ideal Industries 30-092
GREENIE GROUNDING CONN 100 BOX
SKU
801437

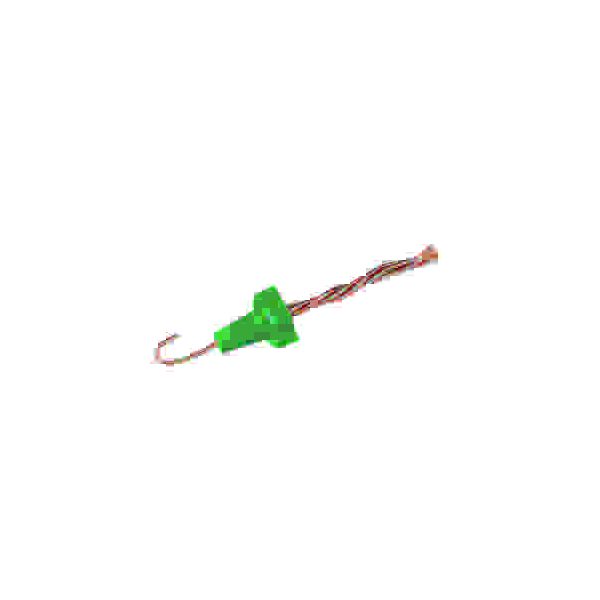

IDEAL® Greenie® Grounding Wire Connector, Series: 92®, Contoured Winged/Twist On Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 14 to 10 AWG Wire, 600 VAC, Specifications: 2 to 5 Conductors, 14 to 2 AWG Minimum, 12 to 4 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Green, 29/32 in W x 1-5/32 in H Dimensions
- Designed for making ground connections and bonding non-metallic sheathed cable
- Contoured wings for maximum leverage
- Live action, square wire spring provides superior grounding connections
- High leverage, contoured wing design provides superior torque on every twist
- Wide range, live action spring handles small combinations and expands to accommodate large combinations as you need it
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- Removable for repeat usage on same size or larger combinations
Temperature Rating | 221 deg F |
---|---|
Color | Green |
Dimensions | 29/32 in W x 1-5/32 in H |
Spring Type | Live Action/Square Wire |
Specifications | 2 to 5 Conductors, 14 to 2 AWG Minimum, 12 to 4 AWG Maximum Conductor Combination Size |
Wire Type | Solid/Stranded Copper |
Shell Style | Contoured Winged/Twist On |
Voltage Rating | 600 VAC |
Series | 92® |
Material | Polypropylene |
Wire Size | 14 to 10 AWG |
Brand | Ideal Industries |
Splices | Twist-On Connectors |
