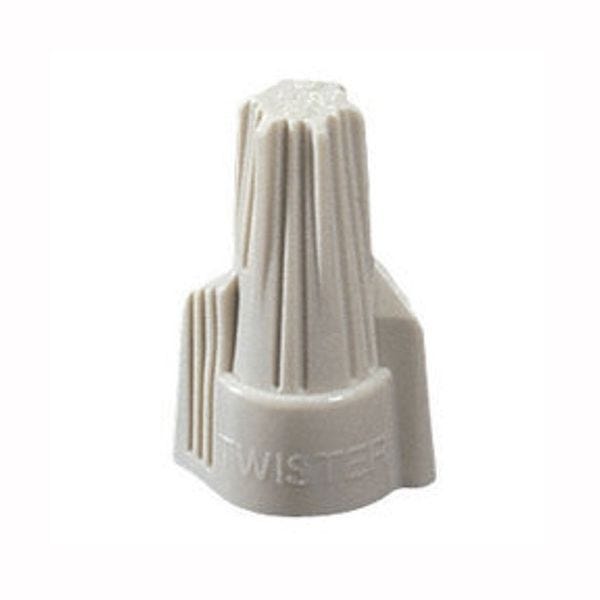

Ideal Industries 30-341J
TAN TWISTER WIRE CONN 750 JAR
SKU
801476
IDEAL® TWISTER® Wire Connector, Flame-Retardant, Series: 341®, Ribbed/Swept Wing/Twist On Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 8 AWG Wire, 600 VAC, Specifications: 1/2 in Wire Strip, 1 to 6 Conductors, 22 to 3 AWG Minimum, 10 to 3 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Tan, 0.54 in Dia x 0.72 in W x 1.14 in H Dimensions
- Exceptional wire range capacity, three models handle wire combinations from as small as 22 AWG to as large as 6 AWG
- Comfortable swept wings offer extra leverage and less effort on large wire combinations
- Expanding square wire spring supports a wide range of common wiring configurations
- Durable co-polymer shell expands for smooth, progressive tightening that provides dependable connections
- Hexagonal top with ribbed cap allows for quick fingertip start as well as use of standard 5/16 in nut driver for fast installation
- Quick take up on even the toughest combinations and including solid to stranded
- 1000 V maximum in fixtures and signs
- Ribbed cap provides a secure grip and fast fingertip starts
- Live action, square wire spring locks onto wire for safe and secure connections
- Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
- Green-B designed for making ground connections and bonding non-metallic sheathed cable
| Temperature Rating | 221 deg F |
|---|---|
| Color | Tan |
| Dimensions | 0.54 in Dia x 0.72 in W x 1.14 in H |
| Spring Type | Live Action/Square Wire |
| Specifications | 1/2 in Wire Strip, 1 to 6 Conductors, 22 to 3 AWG Minimum, 10 to 3 AWG Maximum Conductor Combination Size |
| Wire Type | Solid/Stranded Copper |
| Shell Style | Ribbed/Swept Wing/Twist On |
| Voltage Rating | 600 VAC |
| Series | 341® |
| Material | Polypropylene |
| Wire Size | 22 to 8 AWG |
| Type | Flame-Retardant |
| Brand | Ideal Industries |
| Splices | Twist-On Connectors |
