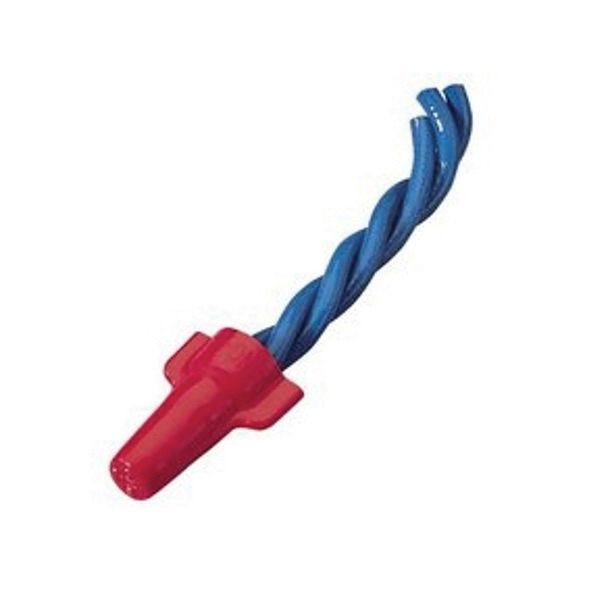

IDEAL 30-652
Wing-Nut_ Wire Connector, 452_
SKU
801946
IDEAL® Wing-Nut® Wire Connector, Flame-Retardant, Series: 452®, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Wire, 18 to 8 AWG Wire, 600 VAC, Specifications: 1/2 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 10 to 4 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Red, Zinc Plated, 0.6 in Dia x 1.234375 in W x 0.9375 in H Dimensions
- Specially designed contoured wings provide a secure grip for extra leverage on maximum wire combinations
- Live action spring expands to accept wire shape and size
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- No pre-twisting required
- Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
- For tough environmental conditions
- Square wire spring threads directly onto conductors for fast and secure connections
- High-leverage, contoured wing provides superior torque on every twist
- Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
- Removable for repeat usage on same size or larger combinations
| Temperature Rating | 221 deg F |
|---|---|
| Color | Red |
| Dimensions | 0.6 in Dia x 1.234375 in W x 0.9375 in H |
| Spring Type | Live Action/Square Wire |
| Specifications | 1/2 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 10 to 4 AWG Maximum Conductor Combination Size |
| Wire Type | Solid/Stranded |
| Shell Style | Winged |
| Voltage Rating | 600 VAC |
| Series | 452® |
| Material | Polypropylene |
| Wire Size | 18 to 8 AWG |
| Type | Flame-Retardant |
| Finish | Zinc Plated |
| Brand | Ideal Industries |
| Splices | Twist-On Connectors |
