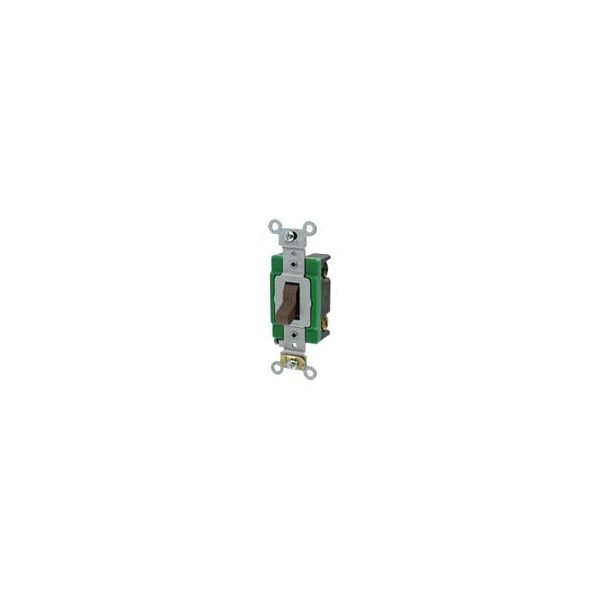

Leviton 3032-2
DP 30A 277V BRN AC
SKU
702178
Leviton®, 3032-2, Toggle Switch, Self-Grounding, 120/277 VAC, 30 A, 2 hp Power, DP Contact Configuration, 2 hp at 120 to 277 VAC Contact, 2 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, Thermoplastic, Brown, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
- Top of the line industrial quality
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 2 hp at 120 to 277 VAC power rating
| Dimensions | 46 in H x 1.31 in W x 13 in D |
|---|---|
| Power Rating | 2 hp |
| Voltage Rating | 120/277 VAC |
| Mounting | Surface |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Contact Configuration | DP |
| Contact Rating | 2 hp at 120 to 277 VAC |
| Color | Brown |
| Type | Self-Grounding |
| Number of Poles | 2 |
| Material | Thermoplastic |
| Terminal Type | Back/Side Wire |
| Amperage Rating | 30 A |
| Actuator | Toggle |
| Enclosure | NEMA WD-1/WD-6 |
| Brand | Leviton Mfg |
| Amperage | 30 Amp |
| Type | Toggle |
| Voltage | 120/277V |
| Color | Brown |
