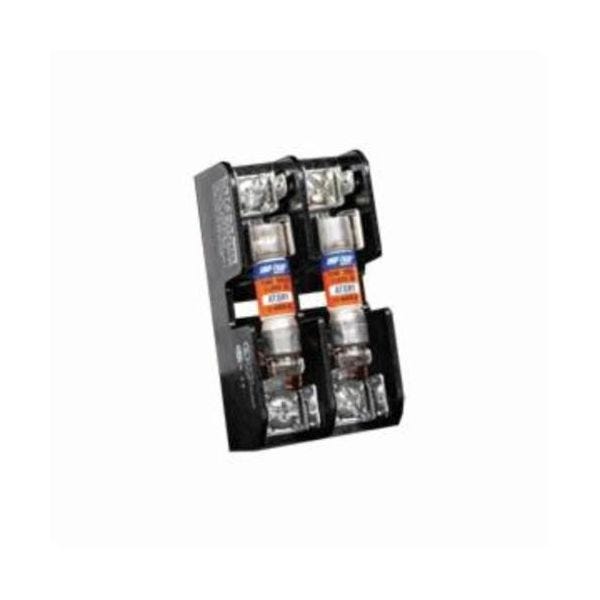

Mersen 30321R
30A 600V SP FUSE BLOCK
SKU
706485
Mersen Fuse Block, Open Style, Series: 303, 600 VAC/VDC, 30 A, 1 Pole, 1 Phase, Class: CC, Pressure Plate/Double Quick-Connect, 14 to 10 AWG Wire, DIN Rail/Threaded Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 125 deg C, For Use With: ATDR, ATMR and ATQR Series Fuse, Glass Reinforced Polycarbonate, 3.04 in H x 0.85 in W x 1.31 in D
- 20 in-lb torque rating
- Tin-plated copper contact
| Dimensions | 3.04 in H x 0.85 in W x 1.31 in D |
|---|---|
| Wire Size | 14 to 10 AWG |
| Number of Poles | 1 |
| Amperage Rating | 30 A |
| Mounting Type | DIN Rail/Threaded |
| Material | Glass Reinforced Polycarbonate |
| Suitable For Use With | ATDR, ATMR and ATQR Series Fuse |
| Voltage Rating | 600 VAC/VDC |
| Fuse Diameter | 13/32 in |
| Temperature Rating | 125 deg C |
| Number of Phases | 1 |
| Connection Type | Pressure Plate/Double Quick-Connect |
| Type | Open Style |
| Class | CC |
| Series | 303 |
| Fuse Length | 1-1/2 in |
| Brand | Merson Fuses |
