Sloan 3080553
REGAL 117XL 6.5GPF CLINIC FV
SKU
199139

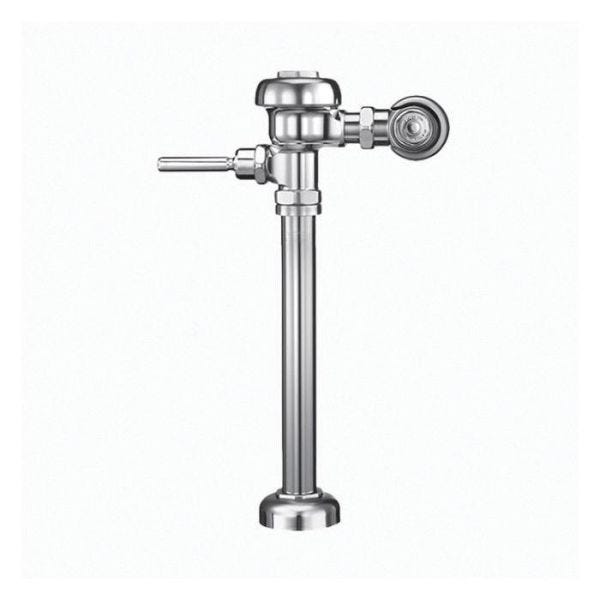

Sloan®, 3080553, Manual Exposed Flushometer, Single-Flush, Series: 117, Service Sink Fixture, 6.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 24 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
- Standard flush volume is 6.5 gpf/24.6 lpf
- Flushometers may be ordered with a handle at the front or a push-button actuator
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
- Exposed service sink flushometer, for use with top spud service sinks
| Flush Rate | 6.5 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Connection Location | Top Spud |
| Series | 117 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open Oscillating |
| Rough-In Size | 24 in |
| Fixture Type | Service Sink |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
