LEGEND 314-256NL
T-5500 11/4" FIPXFIP CURB STOP
SKU
572525

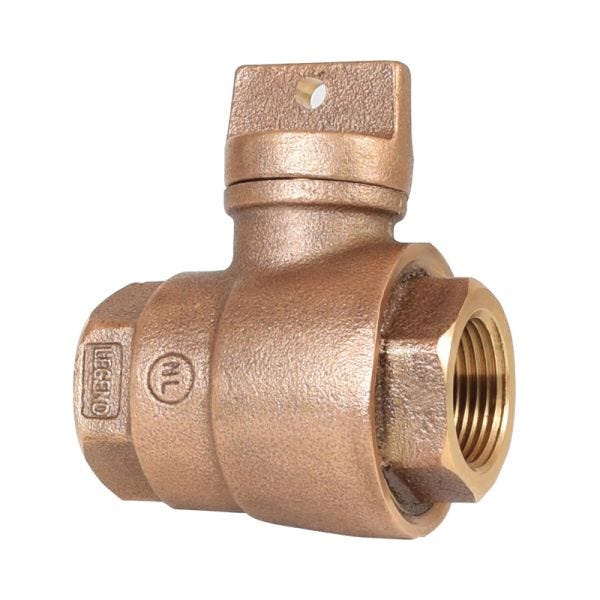

LEGEND Curb Stop, Lead Free, Series: T-5500, 1-1/4 in Nominal, FNPT, 300 psi CWP, 100 deg F, Media: Water, T-Handle Actuator, 4.72 in Inlet to Outlet Length, 2.78 in Top to Inlet Center, Cast Bronze Body, Cast Bronze Trim, Buna-N Stem O-Ring, Import
- Lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws
- 90-degree operation with enclosed operating head stops
- Operating head has been drilled to accept stationary rod cotter pin attachment
- Full-port, ball-and-seat design is superior to plug-type designs
- Durable, PTFE -coated ball assures positive, bubble-tight shutoff, low torque operation and long service life
- For underground water service installations only, to permit shutoff of the water supply, from the water main to the building
- PTFE is a registered trademark of the DuPont company
- 300 psi CWP 100 deg F Max
- Third-party tested and certified in compliance with U.S. Federal Public Law 111-380 (National lead-free plumbing law)
- Cast bronze stem locknut
- Cast bronze end adapter
- Certified lead-free and in compliance with NSF 372 lead content requirements
- Manufactured to AWWA C800 specifications
- Female pipe thread connections comply with ANSI/ASME B1.20.1
- Lead-free
| Media | Water |
|---|---|
| Trim Material | Cast Bronze |
| Temperature Rating | 100 deg F |
| Inlet to Outlet Length | 4.72 in |
| End Style | FNPT |
| Body Material | Cast Bronze |
| Domestic/Import | Import |
| Nominal Size | 1-1/4 in |
| Pressure Rating | 300 psi CWP |
| Top to Inlet Center | 2.78 in |
| Softgoods Material | Buna-N Stem O-Ring |
| Actuator Type | T-Handle |
| Series | T-5500 |
| Brand | Legend |
| Size | 1-1/4" |
| Type | Curb Stops |
