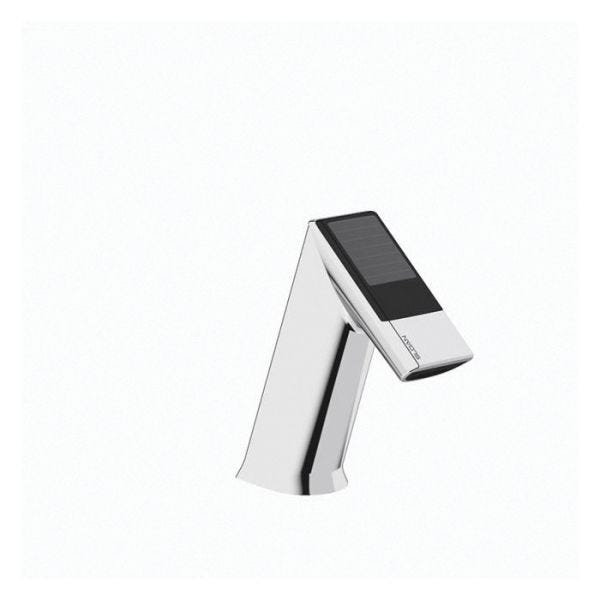

Sloan 3324015
BASYS SOLAR LAV FCT ISM 0.5GPM
SKU
619197
Sloan® BASYS® Sink Faucet, Series: EFX-275, 0.5 gpm, Mid Spout, 6 in Spout Reach, 3-11/16 in Spout Height, 1 Faucet Holes, 3/8 in, Compression, Function: Touchless, 1-1/2 in Maximum Deck Thickness, Deck Mount, Metering Valve/Cartridge, 6-15/32 in H, Die Cast Metal, Polished Chrome, Import, Commercial
- Sensor metering hand washing faucet, solar powered with battery back-up, double-infrared sensor activated for pre-tempered or hot and cold water operation
- All serviceable components above deck for easy installation and maintenance
- All wetted components to be stainless steel, engineered thermoplastic, EPDM and copper or copper alloy
- Solenoid housed in removable carrier that includes supply strainer
- All electronics sealed to IP-67
- Vandal resistant spray insert, key housed inside faucet body
- Mechanical mixing, integral to spout
- Flexible high pressure supply hoses 3/8 in compression connections
- Above deck individual diagnostic indicators for battery life, solenoid condition and power up mode
- Gold plated electrical contacts
- Bi-stable magnetic solenoid valve
- Double infrared sensor has automatic setting feature and microprocessor
- Adjustable run time from 0 to 3600 sec (factory set at 10 se maximum run time upon continuous detection)
- Faucet can be configured to add solar and LCD display
- Battery with solar energy harvesting
- 4 in trim plate
- Integrated side mounted mechanical mixing valve
- Pedestal base
| Maximum Deck Thickness | 1-1/2 in |
|---|---|
| Commercial/Residential | Commercial |
| Valve/Cartridge Type | Metering |
| Connection Size | 3/8 in |
| Series | EFX-275 |
| Number of Faucet Holes | 1 |
| Function | Touchless |
| Finish/Color | Polished Chrome |
| Dimensions | 6-15/32 in H |
| Spout Height | 3-11/16 in |
| Material | Die Cast Metal |
| Spout Type | Mid |
| Spout Reach | 6 in |
| Flow Rate | 0.5 gpm |
| Mounting Type | Deck |
| Connection Type | Compression |
| Domestic/Import | Import |
| Brand | Sloan |
| Finish | Chrome |
