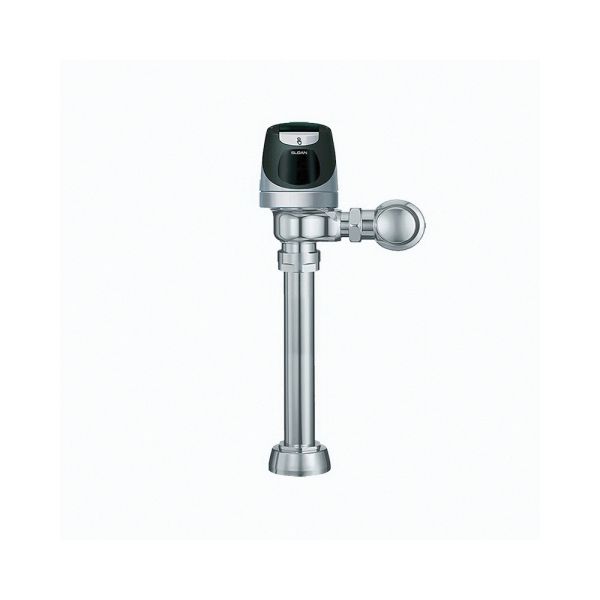

Sloan 3370002T

Sloan®, 3370002T, Sensor Exposed Flushometer, Single-Flush Active Infrared, Series: 8111, Water Closet Fixture, (4) AA Alkaline Batteries Power Source, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic

• Handle packing, main seat, stop seat and vacuum breaker molded from Permex® rubber compound for chloramine resistance
• User friendly 3 sec flush delay
• Low battery flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• State-of-the-art photovoltaic technology delivers solar operation
• Solar powered, the sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux)
• (4) Size AA battery back-up power source
• Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Flex tube diaphragm designed for improved life and reduced maintenance
• Engineered metal cover with replaceable lens window
• Permex® synthetic rubber diaphragm with dual filtered fixed bypass
• Courtesy Flush® override button
• Override button enables manual flushing if sensor's power source fails
• High copper, low zinc brass castings for dezincification resistance
• Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
