Sloan Valve Company 3370004

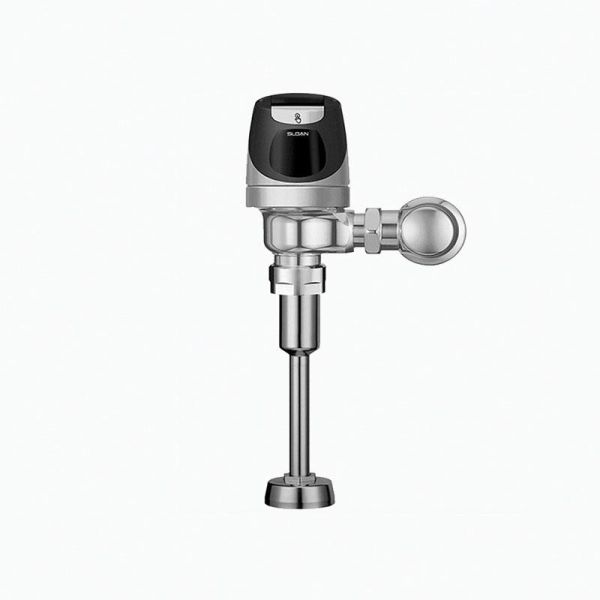

Sloan®, 3370004, Sensor Exposed Flushometer, Single-Flush, Series: 8186, SOLIS® Collection, Urinal Fixture, Solar Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic

• Handle packing, main seat, stop seat and vacuum breaker molded from Permex® rubber compound for chloramine resistance
• Low battery flashing LED
• Sweat solder adapter with cover tube and cast wall flange with set screw
• State-of-the-art photovoltaic technology delivers solar operation
• The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED) and use it as the energy source
• The solar cell can provide approximately 100% power with 650 illuminance (lux)
• (4) Size AA battery back-up power Source
• Synthetic rubber seals for chloramine resistance
• Infrared sensor with multiple focused, lobular sensing fields for high and low target detection
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Engineered metal cover with replaceable lens window
• ADA compliant Sloan® Solis® solar powered infrared sensor for automatic no-hands operation
• 3/4 in IPS screwdriver Bak-Chek® angle stop with vandal-resistant stop cap
• User friendly 3 sec flush delay and Courtesy Flush® override button
• High copper, low zinc brass castings for dezincification resistance
• Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
