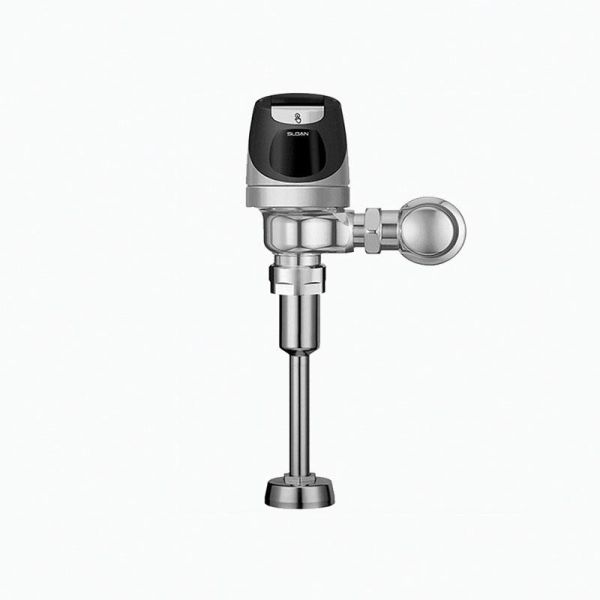

Sloan® SOLIS® Sensor Exposed Flushometer, Single-Flush, Series: 8186, Urinal Fixture, Solar Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 100 psi Pressure, Semi-Red Brass, Polished Chrome
- The sensor Assembly is powered by a solar cell that will harvest power from artificial indoor light (incandescent, fluorescent or led) and use it as the energy source
- The solar cell can provide approximately 100% power with 650 illuminance (lux)
- Four (4) size AA battery back-up power source
- PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
- Flex tube diaphragm designed for improved life and reduced maintenance
- ADA compliant SOLIS® solar-powered infrared sensor for automatic "no hands" operation
- Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Latching solenoid operator
- Engineered metal cover with replaceable lens window
- Courtesy Flush® override button
- Infrared sensor range adjustment screw
- Initial set-up range indicator light (first 10 minutes)
- 3/4 in IPS screwdriver Bak-Chek® angle stop with free spinning, vandal-resistant stop cap
- Adjustable tailpiece
- High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut
- Spud coupling and flange for 3/4 in top spud
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Flush accuracy controlled by CID® technology
- Diaphragm, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- Top sensor position
| Power Source | Solar |
|---|---|
| Flush Rate | 0.5 gpf |
| Inlet Size | 3/4 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 22 to 42 in |
| Connection Location | Top Spud |
| Series | 8186 |
| Material | Semi-Red Brass |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 100 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
