Sloan 3370430
ECOS 8186-0.5BATT OP URN FV
SKU
552798

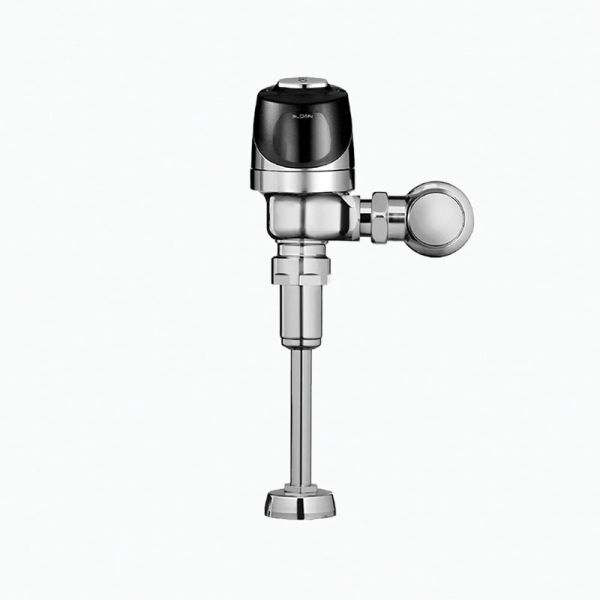

Sloan® ECOS® Sensor Exposed Flushometer, Single-Flush, Series: 8186, Urinal Fixture, Battery Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
- Water efficient flush volume of either 0.13 gpf or 0.25 gpf
- Automatically operates by means of an infrared sensor with multiple focused, lobular sensing fields for high and low target detection
- User friendly 3 sec flush delay
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
| Power Source | Battery |
|---|---|
| Flush Rate | 0.5 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 15 to 30 in |
| Connection Location | Top Spud |
| Series | 8186 |
| Material | Semi-Red Brass |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
