Sloan 3451610
152-ES-S 113/4-123/4 "L" DIM
SKU
283007

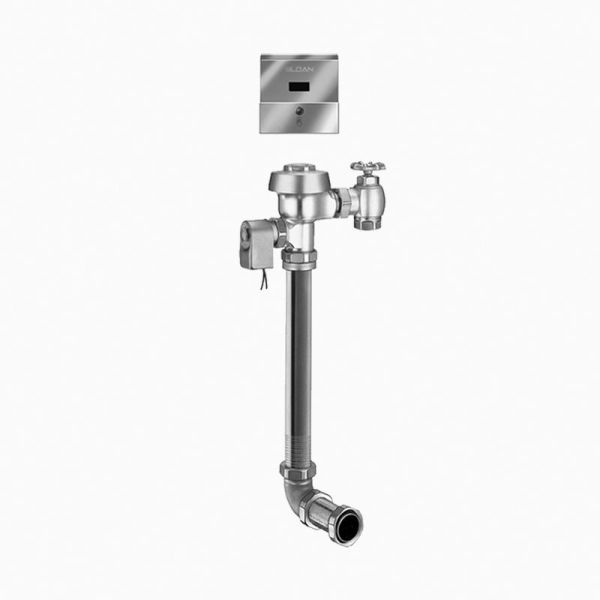

Sloan® Royal® Sensor Concealed Flushometer, Single-Flush, Series: 152 ESS, Optima® Collection, Water Closet Fixture, Hardwired Power Source, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 24 in Rough-In, Diaphragm Valve Design, Connection Location: Back Spud, 22 to 42 in Sensor, Non-Hold Open Handle, Semi-Red Brass, Rough Brass, Domestic
- Water conservation is aided by the ADA compliant, non-hold-open handle which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID® technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
| Power Source | Hardwired |
|---|---|
| Flush Rate | 3.5 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Collection | Optima® |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Sensor Range | 22 to 42 in |
| Connection Location | Back Spud |
| Series | 152 ESS |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open |
| Rough-In Size | 24 in |
| Fixture Type | Water Closet |
| Finish/Color | Rough Brass |
| Brand | Sloan |
