Sloan 3452620
186-1-ESS-OR-ROYAL/UR FV W/OVR
SKU
349060

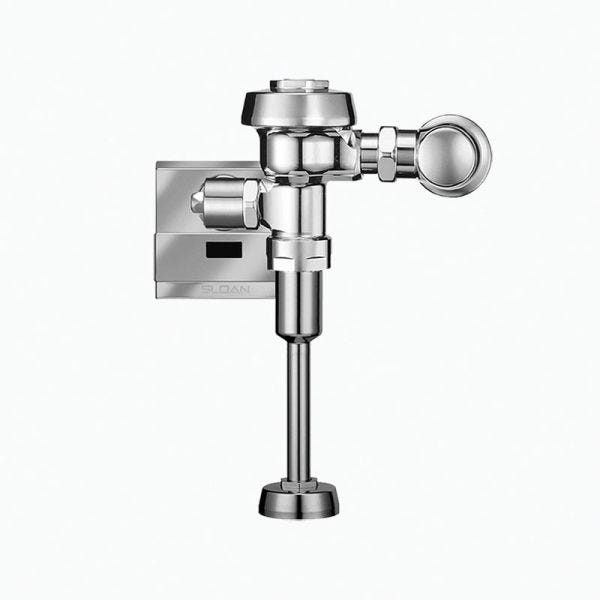

Sloan® Royal® Sensor Exposed Flushometer, Single-Flush, Series: 186 ESS, Urinal Fixture, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
- Flush accuracy controlled by CID® technology
- Infrared sensor with multiple-focused lobular sensing fields for high and low target detection
- Sweat solder adapter with cover tube and cast wall flange with screw
- Optima® EL-150 self-adaptive infrared sensor with indicator light
- Non-hold-open Integral solenoid operator, fixed metering bypass and external volume adjustment to ensure water conservation
- 3/4 in IPS screwdriver Bak-Chek® angle stop with free spinning vandal-resistant stop cap
- High back pressure vacuum breaker flush connection with 1-piece bottom hex coupling nut, spud coupling and flange for 1-1/2 in top spud
- Stop seat and vacuum breaker molded from Permex® rubber compound for chloramine resistance
| Flush Rate | 1 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 15 to 30 in |
| Connection Location | Top Spud |
| Series | 186 ESS |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open Oscillating |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
