Sloan 3453201
ROYAL 195-1-ES-S CONC UR FV
SKU
231873

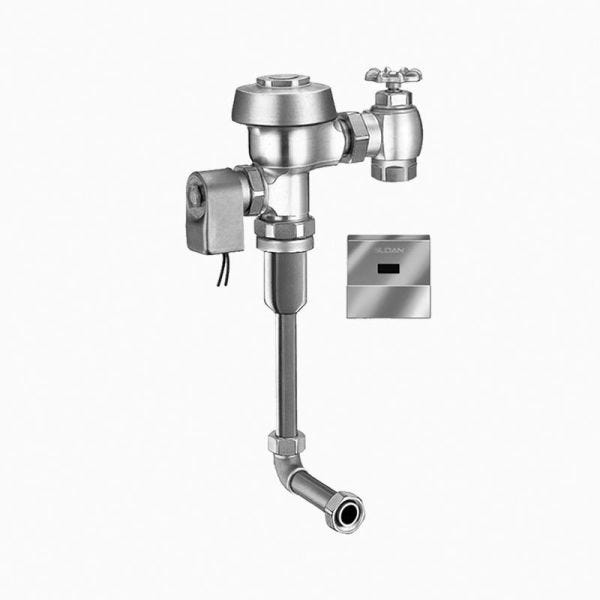

Sloan®, 3453201, Sensor Concealed Flushometer, Single-Flush, Series: 195 ESS, Royal® Collection, Urinal Fixture, Hardwired Power Source, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 13-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Back Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Non-Hold Open Handle, Semi-Red Brass, Domestic
- Flush volumes start as low as a pint of water
- Water conservation is aided by the ADA compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
- 2 to 10-3/4 in L Dimension
| Power Source | Hardwired |
|---|---|
| Flush Rate | 1 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Collection | Royal® |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 15 to 30 in |
| Connection Location | Back Spud |
| Series | 195 ESS |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open |
| Rough-In Size | 13-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Rough Brass |
| Brand | Sloan |
