Spears 3629-012C
*11/4" S/80 CPVC TU BV SOC/FPT
SKU
868040

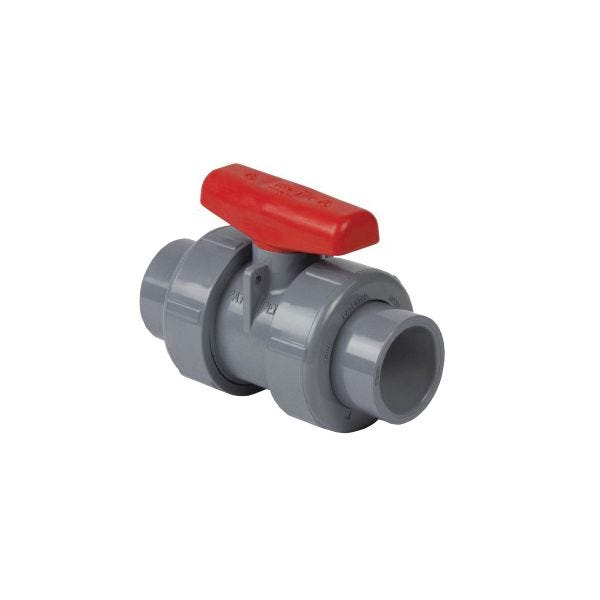

Spears® Ball Valve, Standard, Series: True Union 2000, 1-1/4 in Nominal, Socket and FNPT, 235 psi, 200 deg F, T-Handle Actuator, CPVC Ball, 5-3/4 in Inlet to Outlet Length, 2-13/16 in Top to Inlet Center, CPVC Body, CPVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic
- Spears® Safe-T-Shear® stem
- Self adjusting floating seat
- EPDM NSF® certified for potable water use
- High quality standard ball valve
- Replaceable seats
- Allows future system upgrade
- EPDM O-ring
| Color | Gray |
|---|---|
| End Style | Socket and FNPT |
| Body Material | CPVC |
| Pressure Rating | 235 psi |
| Inlet to Outlet Length | 5-3/4 in |
| Softgoods Material | EPDM |
| Ball Material | CPVC |
| Top to Inlet Center | 2-13/16 in |
| Series | True Union 2000 |
| Trim Material | CPVC Stem and PTFE Seat |
| Temperature Rating | 200 deg F |
| Actuator Type | T-Handle |
| Domestic/Import | Domestic |
| Type | Standard |
| Nominal Size | 1-1/4 in |
| Brand | Spears |
