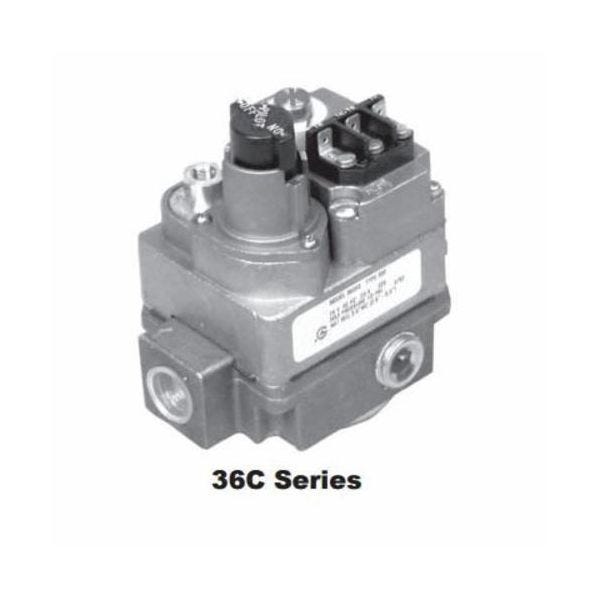

White-Rodgers 36C03-333
W/R 1/2X3/4 24V UNIV GV W/LP *
SKU
285076
White-Rodgers™ Gas Valve, Series: 36C, 1/2 x 3/4 in Nominal, Compression End Style, 0.5 psi Pressure, Standing Pilot Ignition, 230000 Btu/cu-ft Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, 1/8 in NPT Pressure Tap Electrical Connections, -40 to 175 deg F, Import
- Convertible - natural or LP gas
- 2-1/2 to 5 in adjustable regulator
- Inlet/outlet screens
- Line interrupter
- Optional side outlets
- 0.23 A
- Fast opening
- 3-1/2 in regulator setting
- Side outlets tapped and plugged
- This valve can also be replaced by 36C03-333
- 372600 Btu/cu-ft LPG nominal capacity
| Electrical Connections | 1/8 in NPT Pressure Tap |
|---|---|
| Nominal Size | 1/2 x 3/4 in |
| Gas Type | Liquid Propane/Natural Gas |
| Pressure Rating | 0.5 psi |
| Ignition Type | Standing Pilot |
| End Style | Compression |
| Nominal Capacity | 230000 Btu/cu-ft |
| End Style | Compression |
| Temperature Rating | -40 to 175 deg F |
| Series | 36C |
| Coil Voltage | 24 V |
| Domestic/Import | Import |
| Brand | White-Rodgers |
