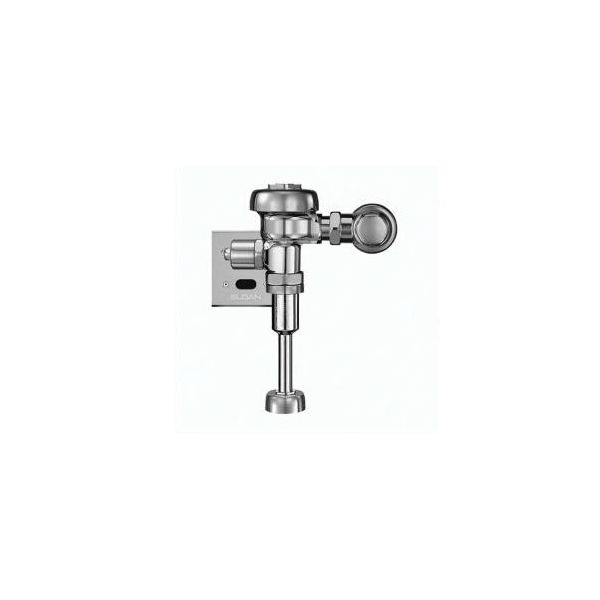

Sloan 3772673
SLOAN SERIES 186-1.0ES-S UR FV
SKU
360870
Sloan® Sensor Flushometer, Single-Flush, Series: 186 ESS, Urinal Fixture, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top, 12 to 32 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
- High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered bypass and vortex cleansing Action
- Vacuum breaker with flush connection
- Sweat solder adapter with cover tube and cast wall flange with set screw
- 3/4 in IPS screwdriver Bak-Chek® angle stop with vandal resistant stop cap
- No external volume adjustment to ensure wwater conservation
- OPTIMA® EL-1500 self-adaptive infrared sensor with indicator light
- Diaphragm, stop seat and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance
| Flush Rate | 1 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 12 to 32 in |
| Connection Location | Top |
| Series | 186 ESS |
| Material | Semi-Red Brass |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
