Sloan Valve Company 3773215
195 ESS-0.5-CP-OR 2-10-3/4 FV
SKU
886475

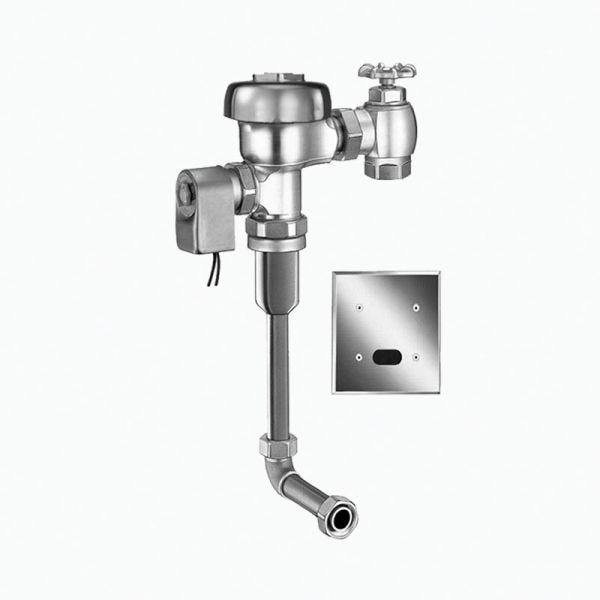

Sloan® Sensor Concealed Flushometer, Single-Flush, Series: 195 ESS, Optima® Collection, Urinal Fixture, Hardwired Power Source, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 13-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Back Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Rough Brass, Domestic
- Water conservation is aided by the ADA compliant, non-hold-open handle which prevents toilet from exceeding intended flush volume
- Low consumption flush accuracy also enhances water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant Permex® synthetic rubber diaphragm with linear filtered by-pass and Vortex™ cleansing action
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- Concealed, sensor activated, Sloan® model urinal flushometer, for 3/4 in back spud urinals
| Power Source | Hardwired |
|---|---|
| Flush Rate | 1 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Collection | Optima® |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 15 to 30 in |
| Connection Location | Back Spud |
| Series | 195 ESS |
| Material | Semi-Red Brass |
| Rough-In Size | 13-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Rough Brass |
| Brand | Sloan |
