Sloan 3782691
SLOAN 186-0.5DFB-SFSM HEU FV
SKU
761205

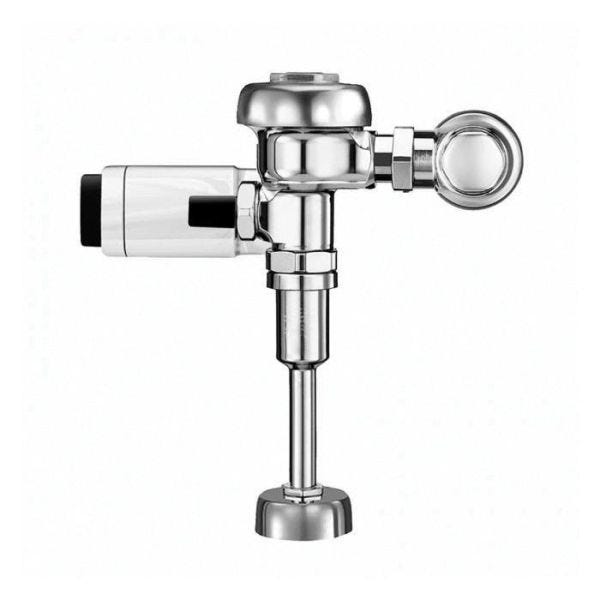

Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, Battery Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
- Water conservation is aided by the ADA compliant, non-hold-open handle which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID® technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant Permex® synthetic rubber diaphragm with linear filtered bypass and Vortex™ cleansing action
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
| Power Source | Battery |
|---|---|
| Flush Rate | 0.5 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 22 to 42 in |
| Connection Location | Top Spud |
| Series | 186 |
| Material | Semi-Red Brass |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
