Sloan 3789010
SLOAN 613-0.5-8-3/4-LDIM UR FV
SKU
876480

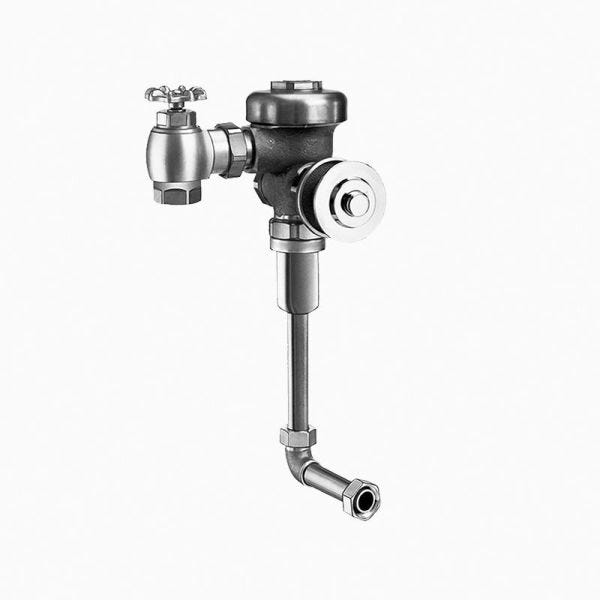

Sloan®, 3789010, Manual Concealed Flushometer, Single-Flush, Series: 613, Urinal Fixture, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 13-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Handle, Semi-Red Brass
- Royal®, Regal® and Sloan® Prison flushometers feature all the performance benefits of standard concealed, diaphragm model flushometers with added durability to withstand rough environments
- Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
- Choose from flushometers intended for use with stainless-steel urinal fixtures from various manufacturers
- Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
- Vandal-proof, push button operation with ADA Compliant fixture wall or panel-mount actuator options on select models
- Non-hold-open feature keeps fixture from surpassing intended water consumption Adjustable tailpiece accommodates various installations
- High chloramine resistant PERMEX® synthetic rubber diaphragm with linear filtered by-pass and vortex cleansing action
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
| Flush Rate | 0.5 gpf |
|---|---|
| Inlet Size | 3/4 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Connection Location | Top Spud |
| Series | 613 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open |
| Rough-In Size | 13-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Rough Brass |
| Brand | Sloan |
