Sloan 3790073
SLOAN SERIES 8186 0.13 UR FV
SKU
514869

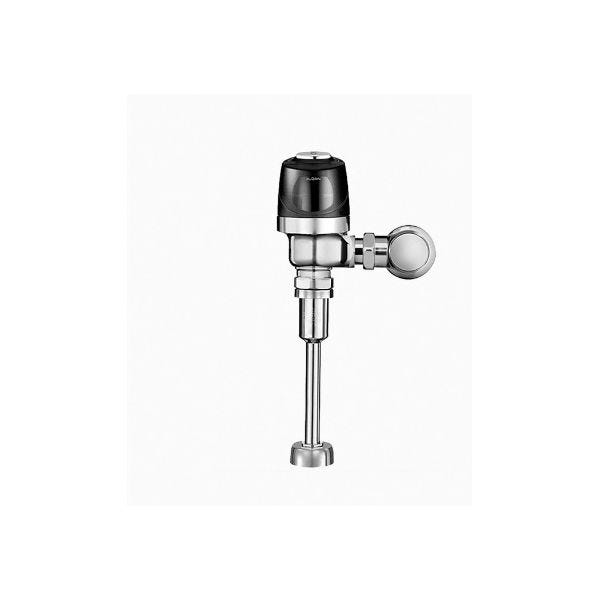

Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8186, Optima Plus® Collection, Urinal Fixture, Battery Power Source, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
- High chloramine resistant Permex® synthetic rubber diaphragm with linear filtered bypass and Vortex™ cleansing action
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- Courtesy Flush® override button
| Power Source | Battery |
|---|---|
| Flush Rate | 0.125 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Collection | Optima Plus® |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 15 to 30 in |
| Connection Location | Top Spud |
| Series | 8186 |
| Material | Semi-Red Brass |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
