Sloan Valve Company 3910286
SLOAN 111 D/F FLSH VLV
SKU
869288

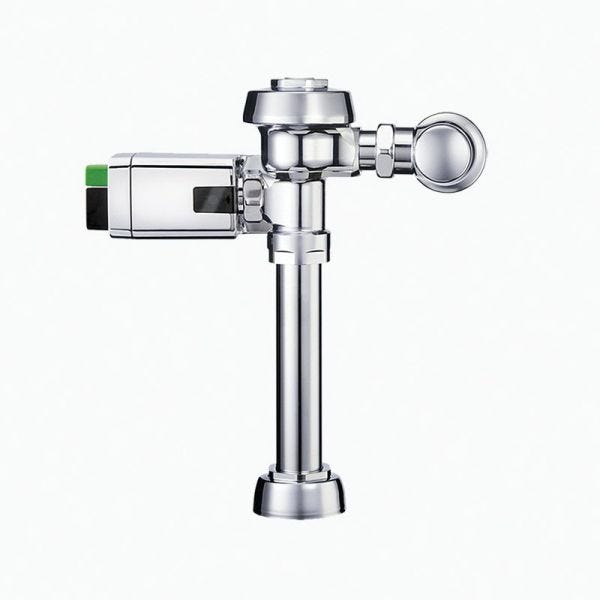

Sloan® Royal® Sensor Exposed Flushometer, Dual-Flush, Series: 111-DFSM-1.6/1.1-HW, Water Closet Fixture, Hardwired Power Source, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Non-Hold Open Handle, Semi-Red Brass, Polished Chrome, Domestic
- All organic rubber has been replaced with synthetic compounds
- Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
- Permex® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
| Power Source | Hardwired |
|---|---|
| Flush Rate | 1.6 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Valve Design | Diaphragm |
| Type | Dual-Flush |
| Spud Coupling | 1-1/2 in |
| Sensor Range | 22 to 42 in |
| Connection Location | Top Spud |
| Series | 111-DFSM-1.6/1.1-HW |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Water Closet |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
