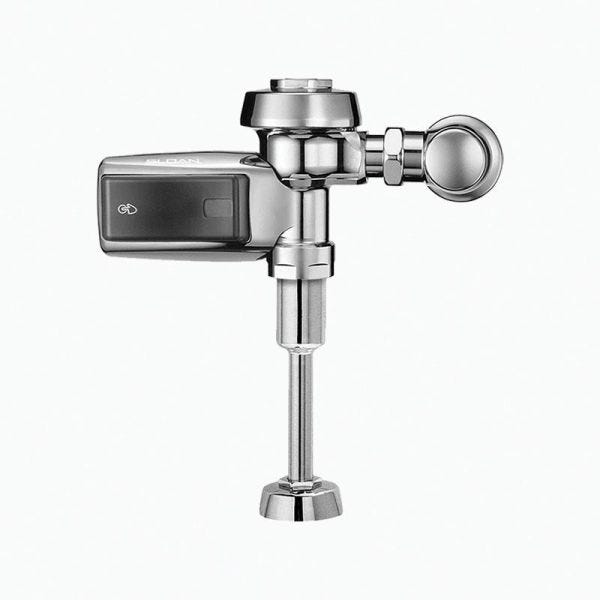

Sloan®, 3912700, Sensor Exposed Flushometer, Single-Flush, Series: 186 SMOOTH, Optima® Collection, Urinal Fixture, Hardwired Power Source, 0.125 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 26 to 32 in Sensor, 25 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
- Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use
- All organic rubber has been replaced with synthetic compounds
- Permex® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
| Power Source | Hardwired |
|---|---|
| Flush Rate | 0.125 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Collection | Optima® |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 26 to 32 in |
| Connection Location | Top Spud |
| Series | 186 SMOOTH |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open Oscillating |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 25 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
