Sloan 3912746
ROYAL 186-0.5 SFSM UR BATT FV
SKU
599056

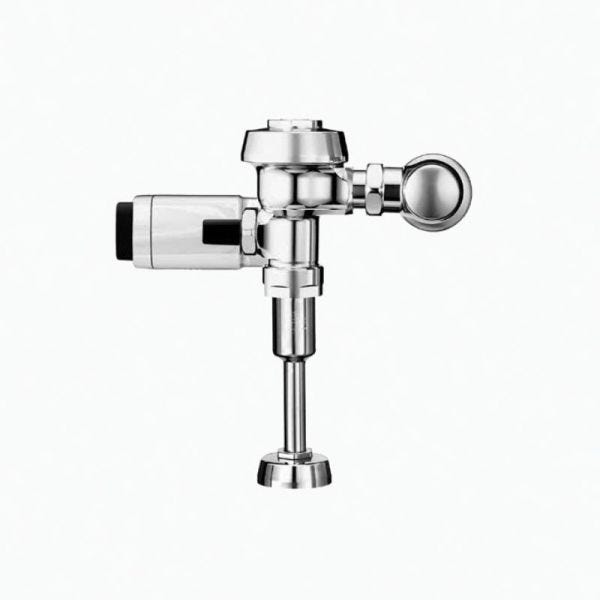

Sloan® Royal® Sensor Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, Battery Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
- Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use
- All organic rubber has been replaced with synthetic compounds
- Permex® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
| Power Source | Battery |
|---|---|
| Flush Rate | 0.5 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 22 to 42 in |
| Connection Location | Top Spud |
| Series | 186 |
| Material | Semi-Red Brass |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
