Sloan 3913316
197-1.0-10-3/4-LDIM-L ROYAL FV
SKU
865718

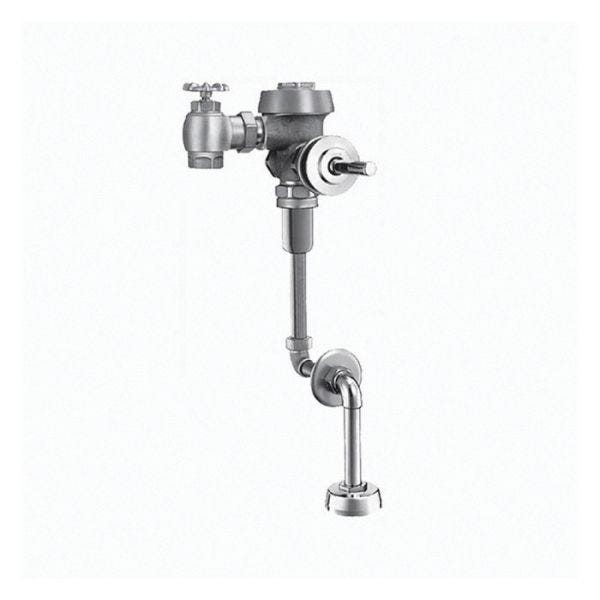

Sloan® Royal® Manual Concealed Flushometer, Single-Flush, Series: 197, Urinal Fixture, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 13-1/2 in Rough-In, Diaphragm, Connection Location: Top Spud, 15 to 80 psi, Non-Hold Open Oscillating, Semi-Red Brass, Rough Brass
- Flush volumes start as low as a pint of water
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
| Flush Rate | 1 gpf |
|---|---|
| Inlet Size | 3/4 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Connection Location | Top Spud |
| Series | 197 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open Oscillating |
| Rough-In Size | 13-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Rough Brass |
| Brand | Sloan |
