GARR 39285
1" X 1/2" F1960 POLY TEE
SKU
891070

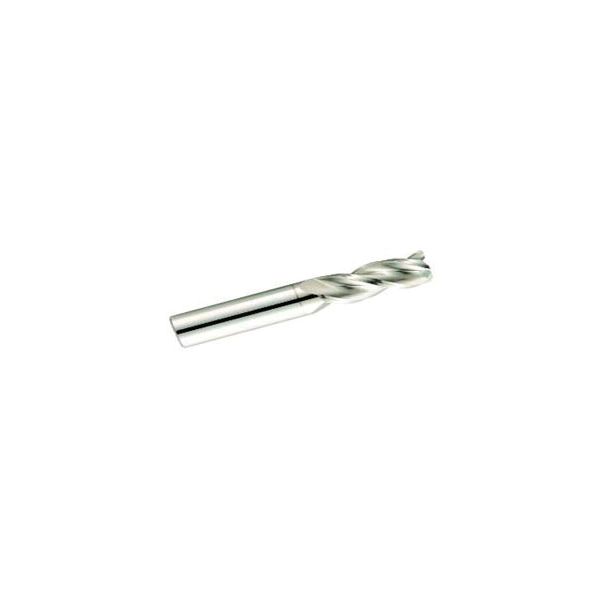

GARR End Mill, Center Cutting High Performance Single End, Series: 143R, 3/16 in Diameter Cutter, 0.02 in Corner Radius, 2 in Overall Length, 9/16 in Length of Cut, 3 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Round Shank, Submicron Grain Solid Carbide, Alumastar® Coated
- Specific coating engineered to repel aluminum
- Engineered to run at 750 to 2500 sfm
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hr for a nominal charge
- Radius tolerance +/-0.0005 in (+/-0.0127 mm)
| Material | Submicron Grain Solid Carbide |
|---|---|
| Shank Type | Round |
| Corner Radius | 0.02 in |
| Cutting Direction | Right Hand |
| Cutter Diameter | 3/16 in |
| Cutting Direction | Right Hand |
| Length of Cut | 9/16 in |
| Flute Type | Spiral |
| Overall Length | 2 in |
| Shank Type | Round |
| Number of Flutes | 3 |
| Shank Diameter | 3/16 in |
| Finish | Alumastar® Coated |
| Shank Type | Round |
| Helix Angle | 38 deg |
| Type | Center Cutting High Performance Single End |
| Series | 143R |
| Brand | ComfortPro AquaSeal |
| Fitting Type | Tees |
| Size | 1" |
| Material | Poly |
| Pex Connection Type | Expansion |
