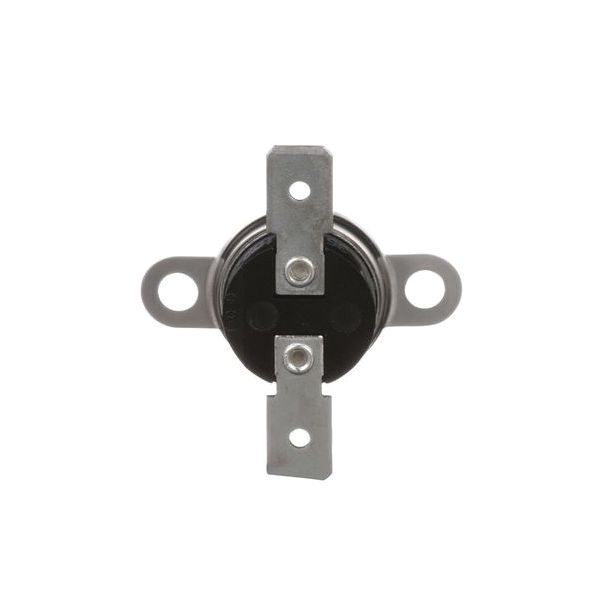

White-Rodgers 3L01-300
SNAP DISC LIMIT CNTRL 300F OUT
SKU
629705
White-Rodgers™ Snap Disc Fan Control, Automatic Reset, Series: 3L01, Open on Rise Switch Action, SPST Contact Form, 250 deg F Cut-In/300 deg F Cut-Out, 5.8/34.8 A at 120 VAC, 2.9/17.4 A at 240 VAC Inductive, 25 A at 120/240 VAC Resistive, 125 VA Pilot Duty, 50 deg F Differential, Quick-Connect Electrical Connections, Airstream Mounting, 1.23 in L x 1.32 in W x 0.37 in H
- Loose ring, stainless steel mounting brackets
- Mounting holes match standard snap discs
- Aluminum disc cup
- Last three numbers indicate cut-in temperatures on fan controls and cut-out temperatures on limits
- Therm-O-Disc style 60T11, type 610026
| Type | Automatic Reset |
|---|---|
| Mounting Type | Airstream |
| Dimensions | 1.23 in L x 1.32 in W x 0.37 in H |
| Electrical Connections | Quick-Connect |
| Contact Form | SPST |
| Pilot Duty Rating | 125 VA |
| Differential | 50 deg F |
| Resistive Rating | 25 A at 120/240 VAC |
| Inductive Rating | 5.8/34.8 A at 120 VAC, 2.9/17.4 A at 240 VAC |
| Switch Action | Open on Rise |
| Temperature Rating | 250 deg F Cut-In/300 deg F Cut-Out |
| Series | 3L01 |
| Brand | White-Rodgers |
