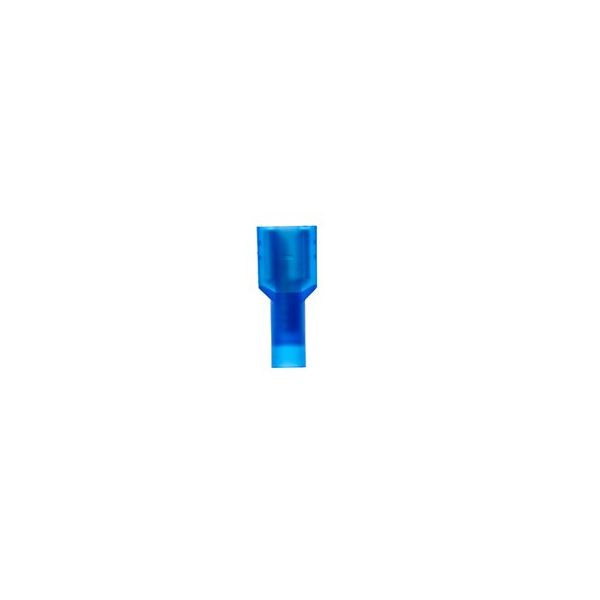

Scotchlok 7000133350
16-14 INSULATED FEMALE DISCONN
SKU
701530
Scotchlok™, 7000133350, Disconnect Terminal, Insulated, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 VAC, Specifications: 0.145 in Dia Max Insulation, 0.08 in ID Barrel, 0.23 in Dia, -40 to 221 deg F, Nylon, Blue, Tin Plated, 0.87 in L x 0.37 in W Dimensions, Insulated: Fully Insulated
- Blue nylon insulated, butted seam barrel offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- Mates with 1/4 in wide male tab
| Temperature Rating | -40 to 221 deg F |
|---|---|
| Insulated | Fully Insulated |
| Color | Blue |
| Dimensions | 0.87 in L x 0.37 in W |
| Specifications | 0.145 in Dia Max Insulation, 0.08 in ID Barrel, 0.23 in Dia |
| Conductor Size | 16 to 14 AWG |
| Voltage Rating | 600/1000 VAC |
| Barrel Type | Butted Seam |
| Terminal Type | Crimp |
| Material | Nylon |
| Type | Fully Insulated |
| Finish | Tin Plated |
| Tab Size | 0.25 in W x 0.032 in THK |
| Brand | 3M |
