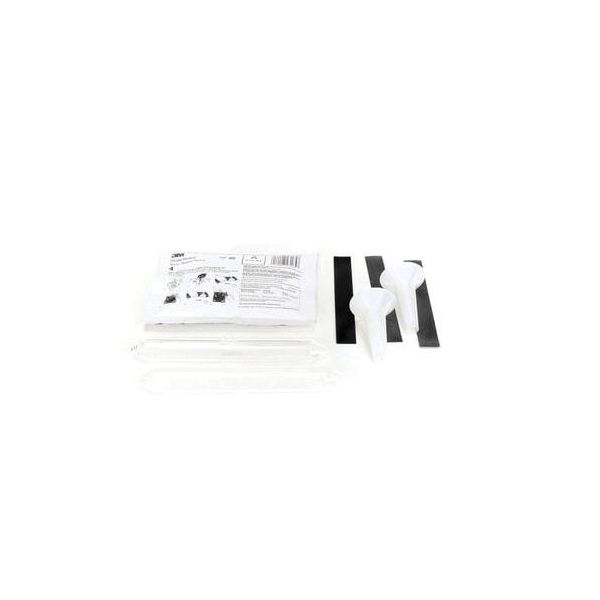

Scotchcast 7100123073
2AWG SPLICING KIT
SKU
701417
Scotchcast™, 7100123073, Cable Splice Kit, Inline Resin, Series: 82-AN, 5 kV Single Conductor, 1 kV Multi-Conductors, Single Conductor/Portable Cable, 0.406 to 0.625 in Diameter Cable, 8 to 2 AWG Conductor, 0.406 to 0.625 in OD Insulation, 4-1/2 in Splice Length, Epoxy, Black
- Insulates and seals unshielded, single conductor cables and multiple conductor cables
- Splices non-shielded wet or dry cables
- Designed for weather exposed or direct burial locations
- Rated for 5 and 1 kV cables
- 5 kV for single conductor, 1 kV multi-conductors
| Number of Conductors | Single/Multiple |
|---|---|
| Color | Black |
| Cable Type | Single Conductor/Portable |
| Conductor Size | 8 to 2 AWG |
| Voltage Rating | 5 kV Single Conductor, 1 kV Multi-Conductors |
| Splice Length | 4-1/2 in |
| Series | 82-AN |
| Insulation Size | 0.406 to 0.625 in OD |
| Material | Epoxy |
| Cable Diameter | 0.406 to 0.625 in |
| Type | Inline Resin |
| Brand | 3M |
