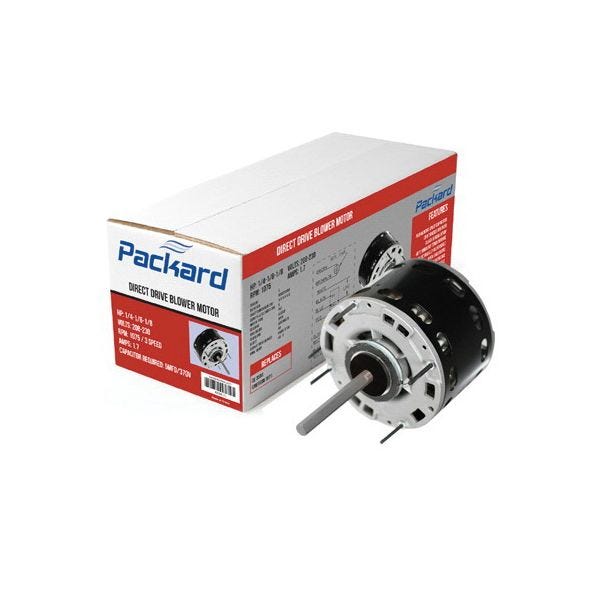

Packard 43589
3/4HP 115V 48FR DD BLOWER MOTO
SKU
766472
Packard Direct Drive Blower Motor, Fan & Blower Motors Application, 3/4 hp, 115 VAC, 10.5 A, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 3 Speed, Open Enclosure, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Reversible Rotation, 1 Service Factor, Sleeve Bearing, Belly Band Mounting, 40 deg C Ambient, Insulation Class: Class B, 5-5/8 in Dia Dimensions
- Electrically reversible rotation
- Automatic overload protection
- Standard efficiency design
- 4-1/2 in shaft extension
- Extended thru-bolts on shaft end
- 2-1/2 in resilient ring
- Continuous air-over
- Designed for continuous air-over applications, such as furnace blowers or central air handling units with single shaft requirements
- Capacitor not included
- 1.2 load factor
- POC15 capacitor
- 370 VAC capacitor required
| Mounting Type | Belly Band |
|---|---|
| Frequency Rating | 60 Hz |
| Dimensions | 5-5/8 in Dia |
| Insulation Class | Class B |
| Application Type | Fan & Blower Motors |
| Phase | 1 ph |
| Speed | 1075 rpm |
| Horsepower | 3/4 hp |
| Service Factor | 1 |
| Rotation | Reversible |
| Bearing Type | Sleeve |
| Frame | 48 |
| Shaft Size | 1/2 in Dia x 4-1/2 in L |
| Number of Speeds | 3 |
| Voltage Rating | 115 VAC |
| Amperage Rating | 10.5 A |
| Temperature Rating | 40 deg C Ambient |
| Enclosure Type | Open |
| Brand | Packard Inc |
