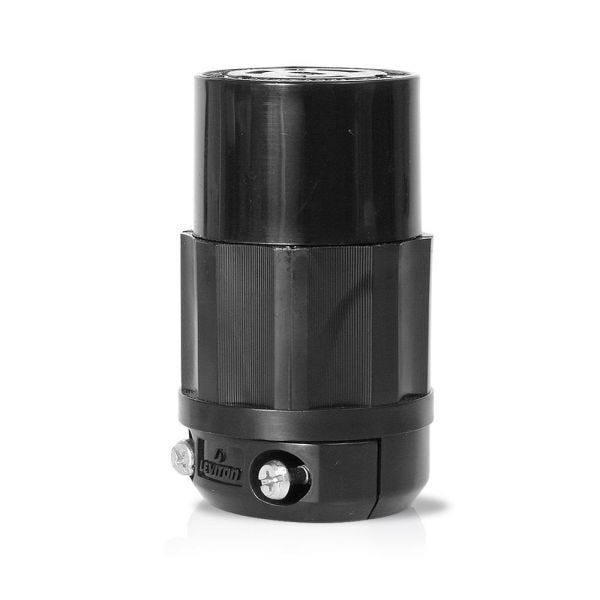

Leviton 4729-C
BLK LKG CONN NM L5-15R
SKU
702498
Leviton®, 4729-C, Grounding Locking Connector, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA L5-15R NEMA Rating, Industrial Grade, 0.24 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 2.76 in H Dimensions
- Super tough nylon body resists damage from severe impact, abrasion and chemicals
- Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
- Cord-clamp does not have to be disassembled from body for wiring - accepts all wire mesh connection strain reliefs
- 1-piece, rivetless 0.035 in THK brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
- Grounding
- 1-phase
- Cable mounting
- Impact modified nylon
- 18 to 10 AWG terminal accommodation
| Grade | Industrial |
|---|---|
| Number of Poles | 2 |
| Color | Black/White |
| Horsepower | 1/2 hp |
| Type | 1-Phase Grounding |
| Dimensions | 1.53 in Dia x 2.76 in H |
| Amperage Rating | 15 A |
| Number of Wires | 3 |
| Cord Diameter | 0.24 to 0.7 in |
| Voltage Rating | 125 VAC |
| Temperature Rating | -40 to 60 deg C |
| Material | Nylon |
| Terminal Type | Screw |
| NEMA Rating | NEMA L5-15R |
| Brand | Leviton Mfg |
| Style | Locking |
