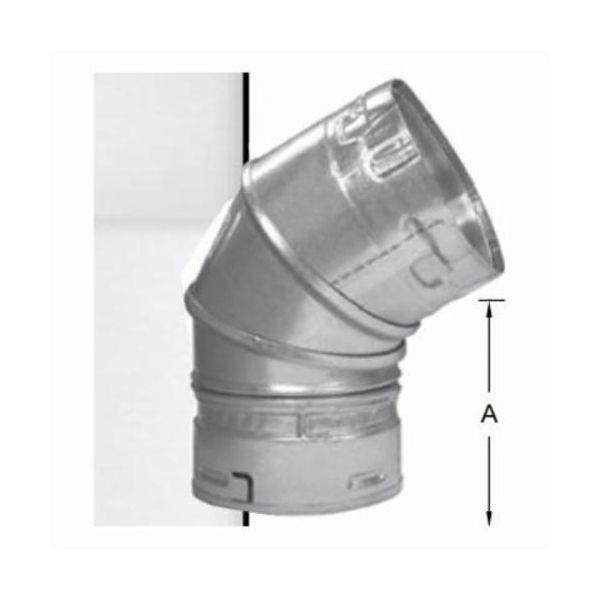

METAL-FAB 4M45/60
4" 45DEG BVENT ELBOW
SKU
409447
METAL-FAB® Elbow, Adjustable, 4 in Size, Hub x Spigot Connection, 45 to 60 deg Angle, 12.86 in Length, For Use With: Double Wall Type-B Gas Vent System, Hot Dipped Galvanized, Domestic
- Products tested and listed to UL 441 requirements to ensure safety and efficiency
- The four-piece M45/60 short radius elbow is fully adjustable from 0 to 60 deg
- The 360 deg rotating collar allows for desired orientation of vent pipe
- SureLock™ locking system, no sheet metal screws required
- The outer wall is constructed of galvanized steel, 0.018 in THK G-90 for sizes 3 to 14 in Dia and 0.024 in THK G-90 for sizes 16 to 30 in Dia
- The inner wall is constructed of aluminum alloy, 0.012 in THK for sizes 3 to 8 in Dia and 0.018 in THK for sizes 10 to 30 in Dia
- The vent includes an integral, annular insulating air space, 1/4 in THK for sizes 3 to 6 in Dia and 1/2 in THK for sizes 7 to 30 in Dia
| Size | 4 in |
|---|---|
| Domestic/Import | Domestic |
| Angle | 45 to 60 deg |
| Suitable For Use With | Double Wall Type-B Gas Vent System |
| Type | Adjustable |
| Finish | Hot Dipped Galvanized |
| Connection Type | Hub x Spigot |
| Length | 12.86 in |
| Brand | Metalfab |
