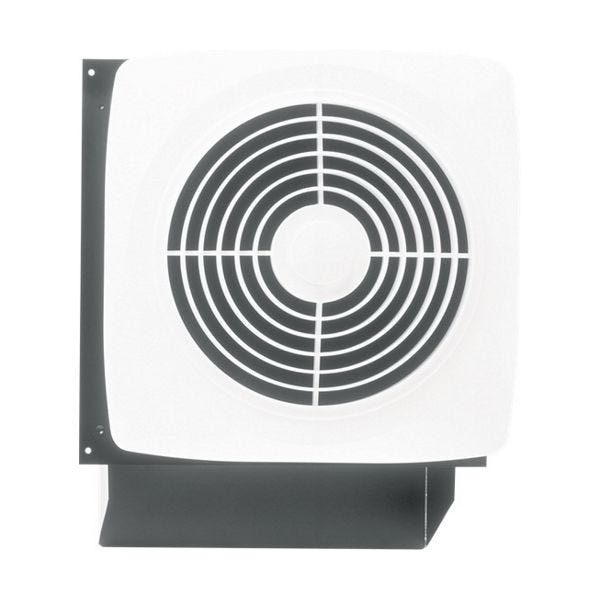

Broan 509
8" THROUGH THE WALL FAN
SKU
259257
Broan® Utility Ventilation Fan, Direct Discharge Through Wall, 180 cfm, 8-3/8 in Duct Dia, 120 VAC, 1.5 A, 60 Hz, 11-1/2 in Grille Length, 11-1/2 in Grille Width, Polymer Grille, 14-1/4 in Housing Width, 14-1/4 in Housing Height, Steel Housing, Wall Mount, No, White, Import
- Efficient ventilation for a variety of applications
- Contemporary styled grille complements modern decor
- White polymeric grilles can be painted to match any decor
- Permanently lubricated, thermally protected, plug-in motor
- Rugged steel housing with modern profile on outer weather hood
- Ventilator shall be steel housing finished with electrically bonded epoxy paint
- Specially designed polymeric fan blade
- Motor assembly offers fast, easy "twist-lock" installation
- Housing adjusts to fit walls from 4-1/2 to 9-1/2 in THK
- Built-in backdraft damper
- Long lasting electrically bonded epoxy coating can be painted to match outdoor styling
- Built-in rotary switch on model 509S no wall switch to wire
- 1925 rpm speed, 6.5 Sones sound level
- Eliminate humidity from laundry rooms, tobacco smoke from recreation rooms and workshops or cooking fumes from kitchens with Broan®’s high efficiency utility ventilators
| Housing Material | Steel |
|---|---|
| Type | Direct Discharge Through Wall |
| Housing Height | 14-1/4 in |
| Frequency Rating | 60 Hz |
| Domestic/Import | Import |
| Flow Rate | 180 cfm |
| Grille Material | Polymer |
| Grille Length | 11-1/2 in |
| Amperage Rating | 1.5 A |
| Voltage Rating | 120 VAC |
| Duct Diameter | 8-3/8 in |
| Humidity Sensing | No |
| Color | White |
| Housing Width | 14-1/4 in |
| Mounting Type | Wall |
| Grille Width | 11-1/2 in |
| Brand | Broan-NuTone |
