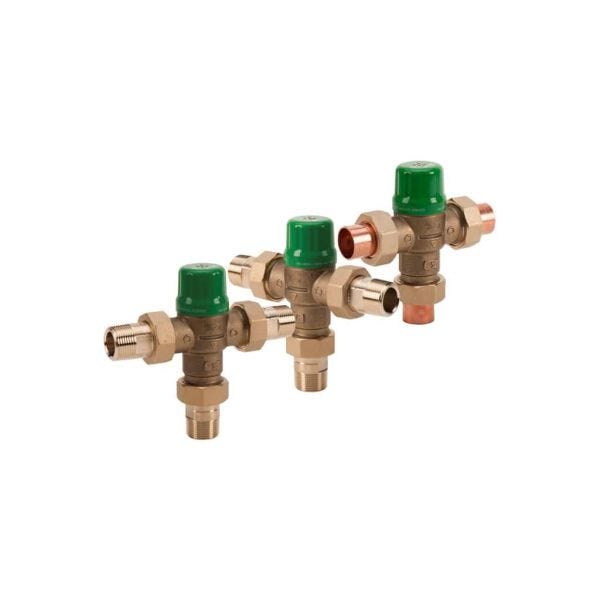

Taco 5123-P2
TACO 3/4" PEX MIX VALVE UN CON
SKU
728798
Taco®, 5123-P2, Mixing Valve, Domestic Water, Series: 5120, 3/4 in Nominal, PEX Union End Style, 200 psi Pressure, 85 to 120 deg F, 1.8 Cv Flow, Media: Water, 5.4 in Inlet to Outlet Length, Forged Brass Body, 5.1 in H x 5.4 in W Dimensions, Domestic
- Suitable for use in Potable Water
- No Routine Maintenance Required
- Outlet Temperature Strip
- +- 3 deg F Accuracy of Outlet Temperature
- Factory set to 115-120 deg F
- 120 to 180 deg F Hot Supply Temperature
- 20% Maximum Variation in Supply Pressure
- 27 deg F Minimum Temperature Differential Between Hot Supply and Mixed
- 39 to 80 deg F Cold Supply Temperature
- 85 to 120 deg F Outlet Temperature Range
- Lockable Maximum Temperature Setting
- Includes Temperature Gauge
- Outlet Temperature Strip
| Pressure Rating | 200 psi |
|---|---|
| Dimensions | 5.1 in H x 5.4 in W |
| Media | Water |
| Series | 5120 |
| End Style | PEX Union |
| Body Material | Forged Brass |
| Flow Capacity | 1.8 Cv |
| Type | Domestic Water |
| Temperature Rating | 85 to 120 deg F |
| Nominal Size | 3/4 in |
| Inlet to Outlet Length | 5.4 in |
| Domestic/Import | Domestic |
| Brand | Taco |
