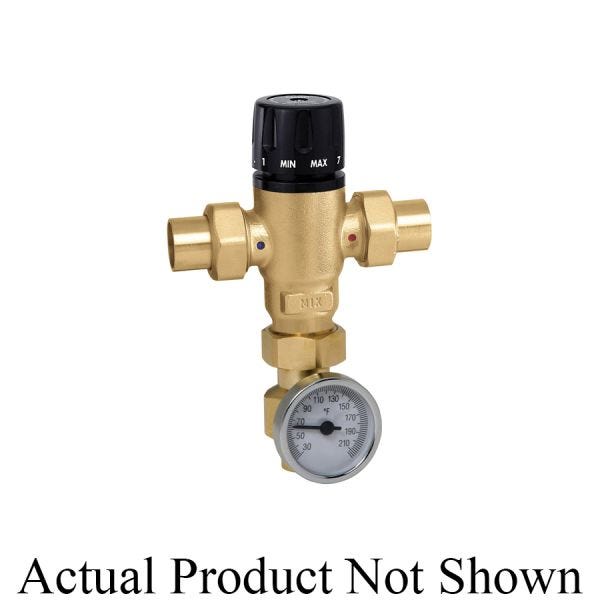

Caleffi 521619AC
1"SWT MIXCAL W/CHECKS
SKU
690714
Caleffi MixCal™ Thermostatic and Pressure Balanced Mixing Valve, 3-Way Adjustable, Series: 521, 1 in Nominal Size, C, 200 psi, 85 to 150 deg F, 1 gpm Flow, Media: Water/Glycol, 6-1/2 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, Brass Body, Stainless Steel Trim, EPDM Seal
- Large mixing chamber and thermostatic cartridge - Enables precise mixed temperature stability during inlet temperature and pressure variations
- Anti-scale polymer materials - Inhibits scaling on internal sliding surfaces, assuring stable temperature control and long life
- Tamper-proof adjustment setting lock - Prevents tampering of the mixed water temperature setpoint
- Peroxide-cured seals - Stands up to treated water, chlorine or chloramines
- Precisely manufactured - Finely machined threads and double o-rings for smooth knob adjustment
- Internal anti-scale materials
- Locking set point knob
| Pressure Rating | 200 psi |
|---|---|
| Media | Water/Glycol |
| Series | 521 |
| End Style | C |
| Trim Material | Stainless Steel |
| Body Material | Brass |
| Flow Capacity | 1 gpm |
| Type | 3-Way Adjustable |
| Temperature Rating | 85 to 150 deg F |
| Nominal Size | 1 in |
| Inlet to Outlet Length | 6-1/2 in |
| Top to Inlet Center | 2-9/16 in |
| Softgoods Material | EPDM Seal |
| Brand | Caleffi North America |
