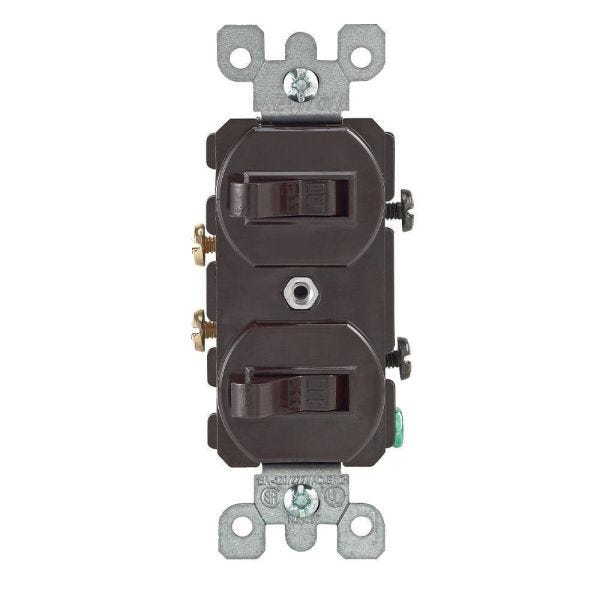

Leviton 5224-2
COMB-2SP 15A 277V AC SW
SKU
701968
Leviton® Combination Switch, Duplex Grounding, Series: Traditional, 20 A, 125 VAC, 1 hp, 1 Poles, 15 A at 120/277 VAC Contact, NEMA 5-15R Enclosure, Surface, 4.2 in H x 1.62 in W x 16 in D, 100 Cycles Operating Cycles, Environmental Conditions: -40 to 120 deg C Operating Temperature, Thermoplastic/Steel, Brown
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- All devices have a grounding screw, except where noted
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- Withstands 1500 VAC for 1 min dielectric voltage
- 100 cycles of overload at 4.8 times rated current
- Side wired connection
| Operating Cycles | 100 Cycles |
|---|---|
| Series | Traditional |
| Mounting | Surface |
| Environmental Conditions | -40 to 120 deg C Operating Temperature |
| Size | 4.2 in H x 1.62 in W x 16 in D |
| Contact Rating | 15 A at 120/277 VAC |
| Color | Brown |
| Type | Duplex Grounding |
| Number of Poles | 1 |
| Material | Thermoplastic/Steel |
| Electrical Ratings | 20 A, 125 VAC, 1 hp |
| Enclosure | NEMA 5-15R |
| Brand | Leviton Mfg |
| Amperage | 15 Amp |
| Type | Switches & Switches |
| Voltage | 120/277V |
| Color | Brown |
