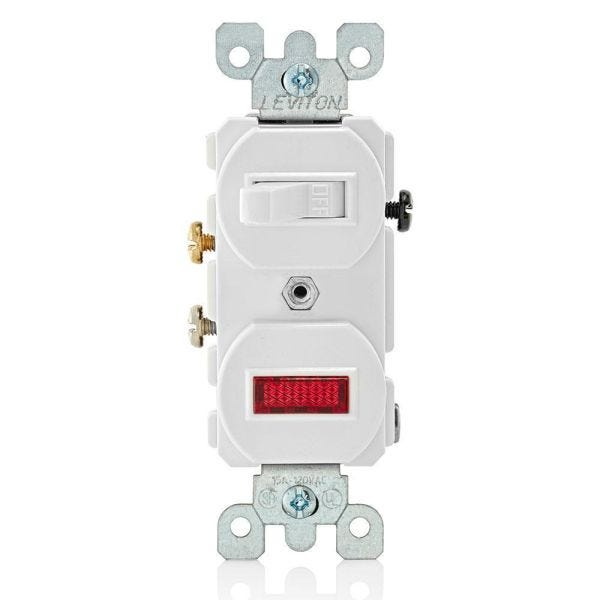

Leviton 5226-W
COMB-SP AC SW&IND LIGHT
SKU
701975
Leviton® AC Combination Switch, Duplex Grounding, 120/125 VAC, 15 A, 1 Pole, Neon Pilot Lamp, Toggle Action, NEMA 5-15R Enclosure, Surface Mounting, Side Wire Terminal, -40 to 120 deg C, Thermoplastic, White, 4.2 in H x 1.62 in W x 16 in D Dimensions
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
| Lamp Type | Neon Pilot |
|---|---|
| Dimensions | 4.2 in H x 1.62 in W x 16 in D |
| Voltage Rating | 120/125 VAC |
| Series | Traditional |
| Action | Toggle |
| Temperature Rating | -40 to 120 deg C |
| Mounting | Surface |
| Contact Rating | 15 A at 120/125 VAC |
| Color | White |
| Type | Duplex Grounding |
| Number of Poles | 1 |
| Material | Thermoplastic |
| Terminal Type | Side Wire |
| Amperage Rating | 15 A |
| Enclosure | NEMA 5-15R |
| Brand | Leviton Mfg |
| Amperage | 15 Amp |
| Type | Switches & Lights |
| Voltage | 120/277V |
