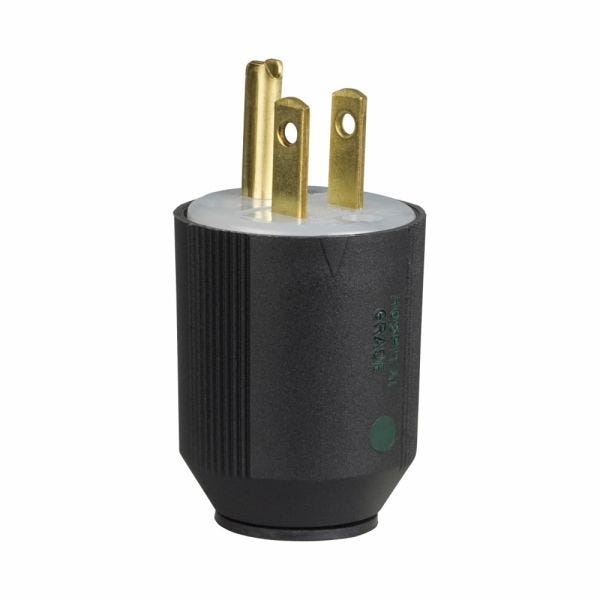

EATON 5266NHG
GRD PLG-N5-15P HOSP
SKU
700047
EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices Straight Blade Plug, Grounding RJ11/RJ14 Telephone Jack, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial/Hospital Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Back Wire/Screw Terminal, Nylon, Black/White, 1.51 in Dia Dimensions
- Quick drive stainless steel assembly screws provide corrosion-resistance and speed installation time
- Broad selection of flanged inlets accept 12 to 4 AWG conductors
- Angled plug versions have 4 possible positions for maximum convenience
- Neoprene gasket seals around cord for added terminal protection from external elements
- Rugged high strength construction
- Unique internal clamp design secures cord during assembly, reducing installation time
- 18 to 12 AWG wire
| Grade | Industrial/Hospital |
|---|---|
| Number of Poles | 2 |
| Color | Black/White |
| Type | Grounding RJ11/RJ14 Telephone Jack |
| Dimensions | 1.51 in Dia |
| Amperage Rating | 15 A |
| Number of Wires | 3 |
| Cord Diameter | 0.33 to 0.66 in |
| Voltage Rating | 125 VAC |
| Temperature Rating | -40 to 75 deg C |
| Material | Nylon |
| Terminal Type | Back Wire/Screw |
| NEMA Rating | NEMA 5-15P |
| Brand | Cooper Wiring Devices |
