EATON 5269NHG
GRD HOSPCONN-N5-15R
SKU
700249

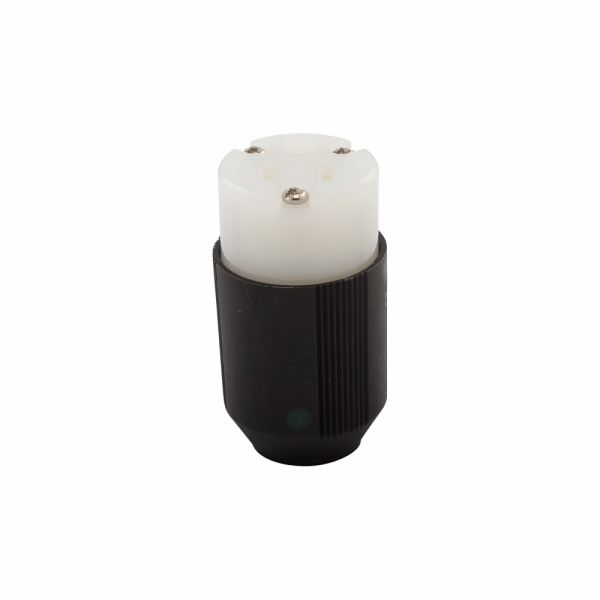

EATON Arrow Hart™ AutoGrip™ Eaton Wiring Devices Straight Blade Connector, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15 NEMA Rating, Industrial/Hospital Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.52 in Dia Dimensions
- AutoGrip™ clamp design secures cord during assembly, reducing installation time
- Rugged nylon body resists impact and exposure to chemicals
- Neoprene gasket seals around cord for added terminal protection from external elements
- Tapered, individual wire pockets guide stranded wire into contact area for ease of installation
| Grade | Industrial/Hospital |
|---|---|
| Number of Poles | 2 |
| Color | Black/White |
| Dimensions | 1.52 in Dia |
| Amperage Rating | 15 A |
| Number of Wires | 3 |
| Cord Diameter | 0.33 to 0.66 in |
| Voltage Rating | 125 VAC |
| Temperature Rating | -40 to 75 deg C |
| Material | Nylon |
| Terminal Type | Screw |
| NEMA Rating | NEMA 5-15 |
| Brand | Eaton |
