Caleffi 548096A
HYDRO SEPERATOR 1" SW U
SKU
540927

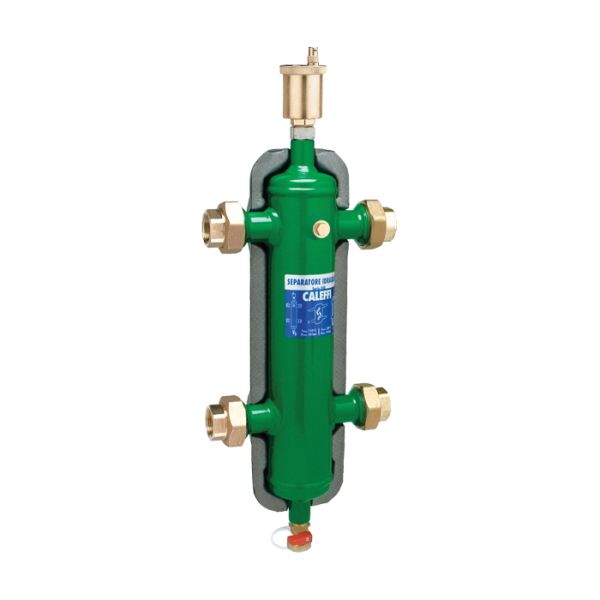

Caleffi Hydraulic Separator, Series: 548, 1 in Nominal, C Union, 150 psi Working, 32 to 210 deg F, 11 gpm, 0.5 Maximum Percentage of Glycol, PE-X Insulation, Steel, 8-3/4 in W
- 300 Series stainless steel internal baffle
- Epoxy resin painted steel body
- Double density closed cell expanded PE-X
| Insulation Material | PE-X |
|---|---|
| Nominal Size | 1 in |
| Working Pressure | 150 psi |
| Flow Rate | 11 gpm |
| Maximum Percentage of Glycol | 0.5 |
| Dimensions | 8-3/4 in W |
| Material | Steel |
| Connection Type | C Union |
| Temperature Rating | 32 to 210 deg F |
| Series | 548 |
| Brand | Caleffi North America |
