Caleffi 551009A
CALEFFI 2"IP DISCAL AIR SEPERA
SKU
394768

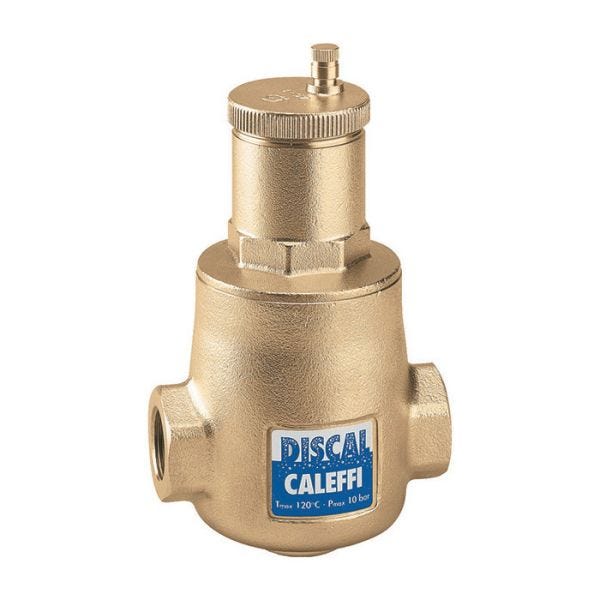

Caleffi DISCAL® Air Separator, Series: 551, 2 in Nominal, FNPT, 150 psi Working, 32 to 250 deg F, Suitable Media: Water/Glycol Solution, Brass, 5-1/8 in W x 8-1/4 in H
- Anti-rotation/anti-vibration pinned float - Creates space between float and air vent wall to prevent float hang-up from debris or variations in separator installation orientation
- Large-diameter chamber - Slows fluid flow dramatically, combines with concentric, sharp-edged mesh design to cause micro-bubbles to efficiently collect and coalesce, highly effective automatic air elimination
- Anti-corrosion coalescing mesh - Constructed of glass-filled nylon, more resistant to dissolved oxygen and acidic fluids than plated metals
- Robust stainless steel float linkages - Reliable float alignment even during turbulent conditions such as filling from bottom
- Corrosion resistant - All components highly resistant to hydronic chemical additives or unstable pH fluid
- Stainless steel float guide pin and linkage
- Glass reinforced nylon internal element
| Suitable Media | Water/Glycol Solution |
|---|---|
| Nominal Size | 2 in |
| Working Pressure | 150 psi |
| Dimensions | 5-1/8 in W x 8-1/4 in H |
| Material | Brass |
| Connection Type | FNPT |
| Temperature Rating | 32 to 250 deg F |
| Series | 551 |
| Brand | Caleffi North America |
