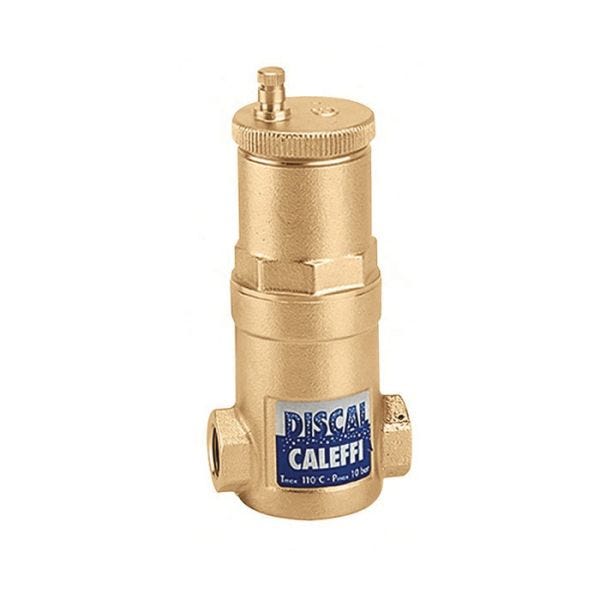

Caleffi 551022A
DISCAL COMPACT AIR SEPARATOR 3/4"
SKU
515728
Caleffi DISCAL® Air Separator, Compact, Series: 551, 3/4 in Nominal, Solder, 150 psi Working, 32 to 250 deg F, Suitable Media: Water/Glycol Solution, Brass, 3-1/6 in W x 6-7/8 in H
- Air separators are used to continuously remove the air contained in the hydronic circuits of heating and cooling systems
- The air discharge capacity of these devices is very high
- They are capable of removing automatically all the air present in the system down to the micro-bubble level
- The circulation of fully de-aerated water enables the equipment to operate under optimum conditions, free from noise, corrosion, localized or mechanical damage
- Micro-bubbles, fusing with each other, increase in volume (get larger) until they become large enough to rise to the top where they are automatically released
- Stainless steel float guide pin and linkage and mesh internal element
- 1/2 in NPT bottom thread
- Up to 100% removal air separation efficiency
| Suitable Media | Water/Glycol Solution |
|---|---|
| Nominal Size | 3/4 in |
| Working Pressure | 150 psi |
| Dimensions | 3-1/6 in W x 6-7/8 in H |
| Material | Brass |
| Type | Compact |
| Connection Type | Solder |
| Temperature Rating | 32 to 250 deg F |
| Series | 551 |
| Brand | Caleffi North America |
