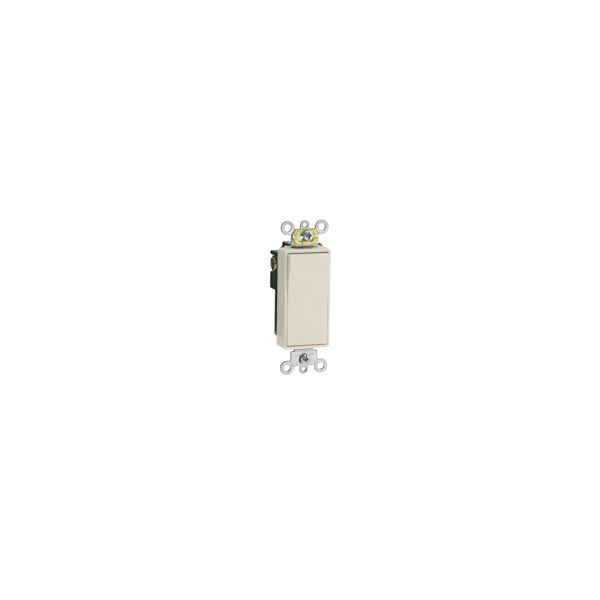

Leviton 5621-2T
5621-2T DECORA 20A
SKU
804124
Leviton®, 5621-2T, AC Quiet Switch, Self-Grounding, 120/277 VAC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 VAC Contact, 1 Pole, Maintained/Momentary Action, Rocker Actuator, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Light Almond, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.76 in W x 1.6 in D Dimensions
- Full rated current capacity with tungsten, fluorescent or resistive loads
- Motor capacity is 80% of switch rating
- Back and side wiring terminals accept both solid and stranded wire for easy installation
- New architecturally styled smooth action concave rocker
- Heavy duty impact resistant thermoplastic construction for long service life in commercial applications
- Two ground connection options a green grounding screw and a self-grounding clip
- Engineered for fine tolerances and top performance
- Decora® plus switches feature impact resistant thermoplastic construction for long service life
| Dimensions | 46 in H x 1.76 in W x 1.6 in D |
|---|---|
| Power Rating | 1 hp, 2 hp |
| Voltage Rating | 120/277 VAC |
| Operating Cycles | 50000 Cycles |
| Action | Maintained/Momentary |
| Mounting | Surface |
| Environmental Conditions | -40 to 120 deg C Operating Temperature |
| Contact Rating | 20 A at 120/277 VAC |
| Color | Light Almond |
| Type | Self-Grounding |
| Number of Poles | 1 |
| Material | Thermoplastic |
| Terminal Type | Back/Side Wire |
| Amperage Rating | 20 A |
| Actuator | Rocker |
| Brand | Leviton Mfg |
| Amperage | 20 Amp |
| Voltage | 120/277V |
| Style | Decora |
